Driving Position Memory Switch Test/Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector from the driving position memory switch (A).

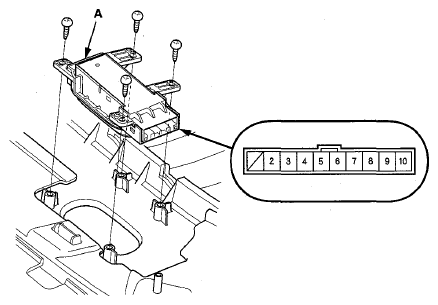

Fig 1: Identifying Driving Position Memory Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the four screws, then remove the switch from the door panel.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting on the digital volt/ohm meter to check the diode bias.
- Note this important operation characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).

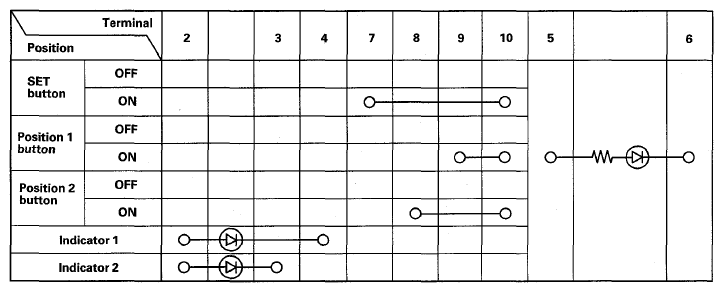

  Fig 2: Driving Position Memory Switch Terminals Continuity Chart
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
