FTP Sensor Replacement

  1. Raise the vehicle on a lift (see LIFT AND SUPPORT POINTS ).
  2. Disconnect the FTP sensor connector (A).

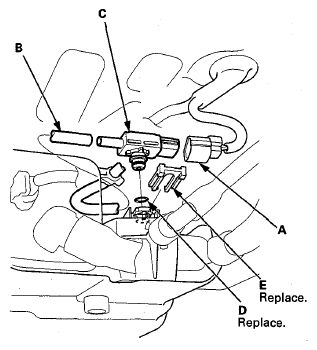

    Fig 1: Identifying FTP Sensor, Connector And Hoses
    G08059819Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the hose (B), then remove the FTP sensor (C).
  4. Install the parts in the reverse order of removal with a new O-ring (D) and a new retainer (E).
