Boost Solenoid: Service and Repair

Turbocharger Boost Control Solenoid Valve Replacement

1. Remove the charge air cooler.

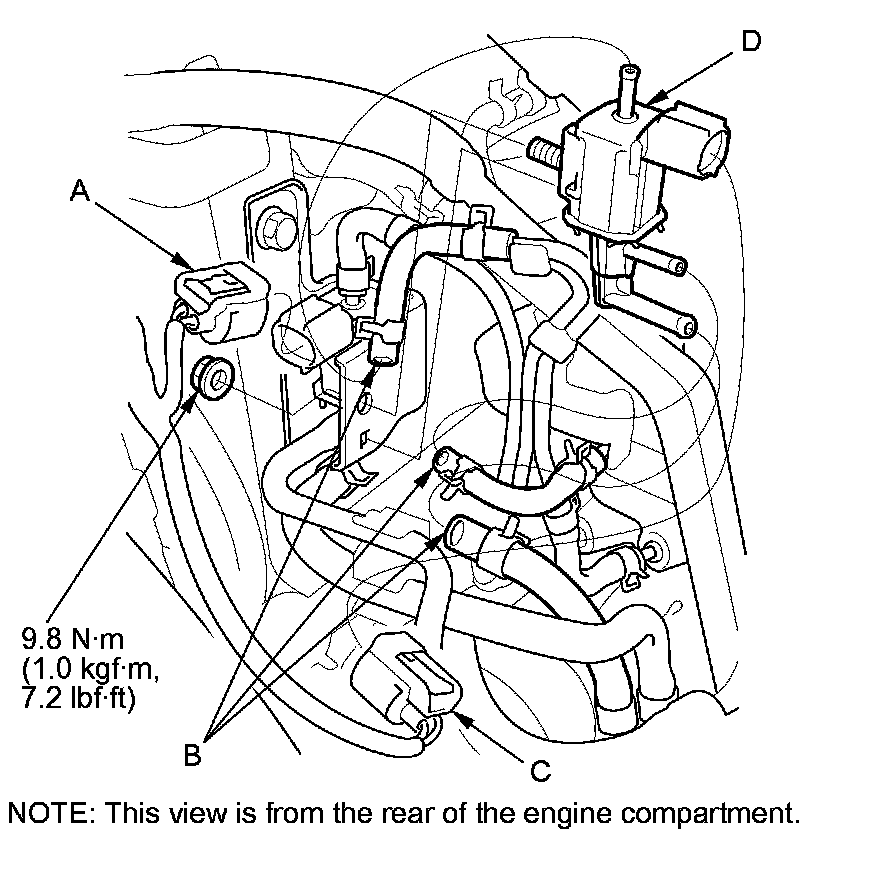

2. Disconnect the turbocharger wastegate control solenoid valve connector (A).





3. Disconnect the hoses (B), and the turbocharger boost control valve connector (C).

4. Remove the turbocharger boost control solenoid valve (D).

5. Install the parts in the reverse order of removal.
