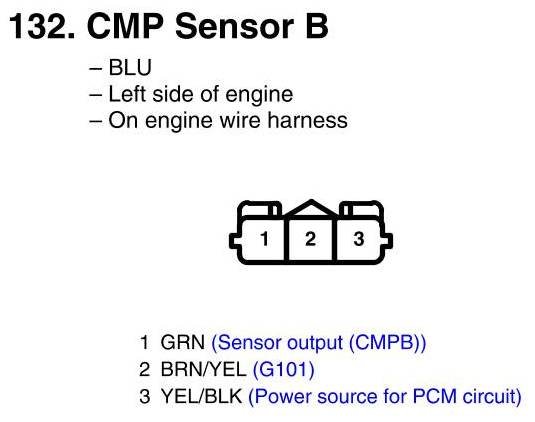

CMP Sensor B Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
CMP Sensor B Connector View
