CMP Pulse Plate B Replacement

CMP Pulse Plate B Replacement

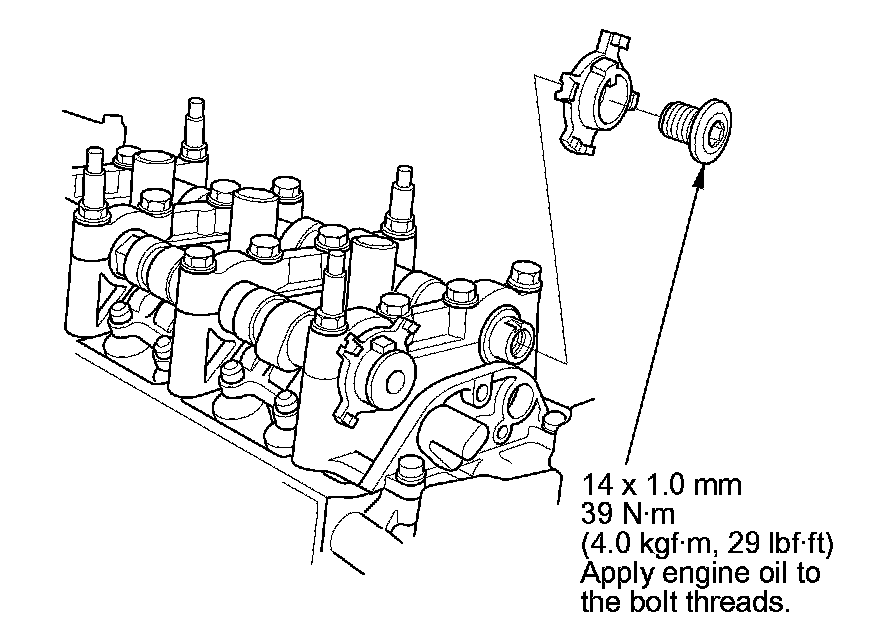

1. Remove the cylinder head cover Cylinder Head Cover Removal.

2. Remove the CMP sensor B CMP Sensor B Replacement.

3. Hold the camshaft with an open-end wrench, then loosen the bolt.






4. Remove the CMP pulse plate B.






5. Install the CMP pulse plate B in the reverse order of removal.
