CMP Sensor A Replacement

CMP Sensor A Replacement

1. Remove the air cleaner Service and Repair.

2. Remove the air bypass outlet pipe Service and Repair.

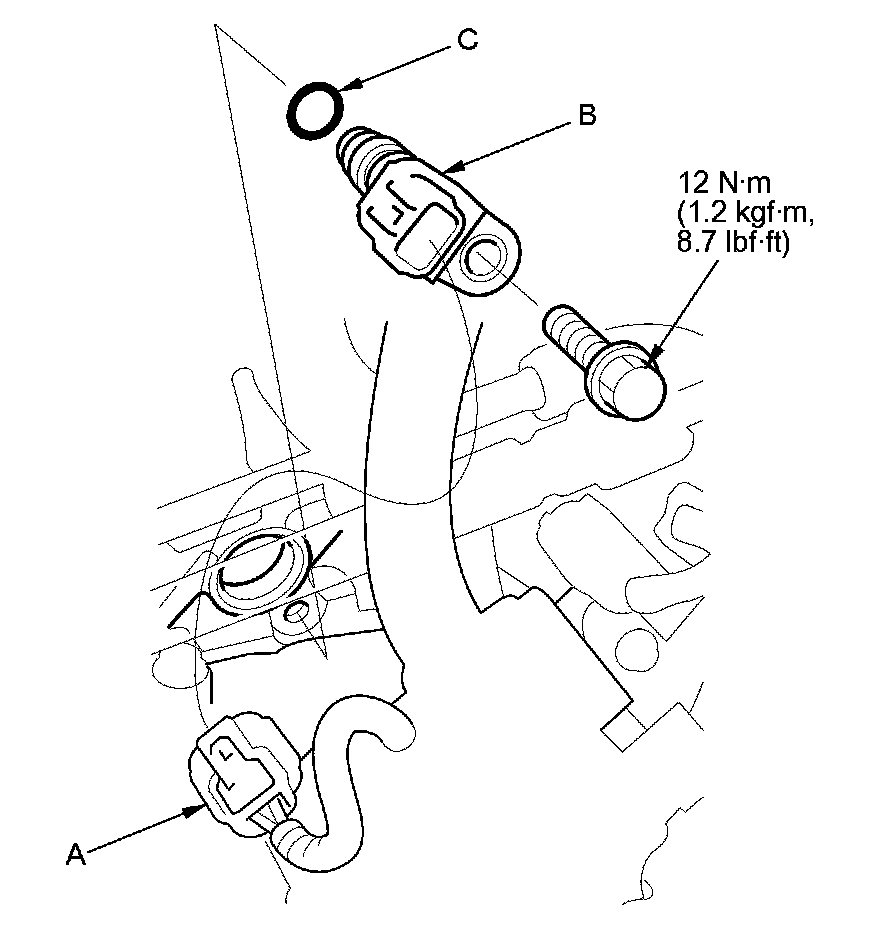

3. Disconnect the CMP sensor A 3P connector (A).





4. Remove CMP sensor A (B) from the intake camshaft side of the cylinder head.

5. Install the parts in the reverse order of removal with a new O-ring (C).
