Interface dial 5P connector

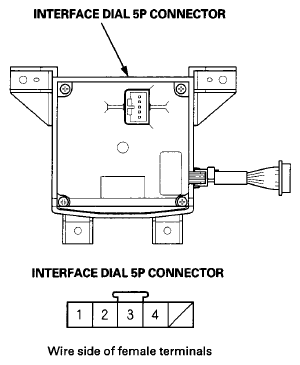

Fig 1: Identifying Interface Dial 5P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

TERMINAL NUMBER AND WIRE COLOR DESCRIPTION

Terminal Number

Wire Color

Terminal Name

Description

Voltage (about)

Symptom

WHT

JOG (jog)

Interface dial operation signal

0-5 V pulses

If open: You cannot operate navigation system. If short to ground: You cannot operate navigation system.

GRY⁽¹⁾

SH JOG (Shield jog)

Shield for interface dial signal

BLK

GND (Ground) (G506)

Ground for interface dial

0 V

If open: You cannot operate navigation system.
If short to ground: No effect on navigation system operate.

PUR

ACC (Accessory)

Power source for interface dial

Battery voltage at ACC (I)

If open: You cannot operate navigation system.
If short to ground: Blows fuse No. 32 (10 A) in the driver's under-dash fuse/relay box.

⁽¹⁾	The shielded wires have a heat-shrink tube insulating the outside of the wire.

The color of the insulating tube, typically black or dark gray, may not match the color of the wire shown on the circuit diagram.
