VSA Modulator-Control Unit Inputs and Outputs for 36P Connector

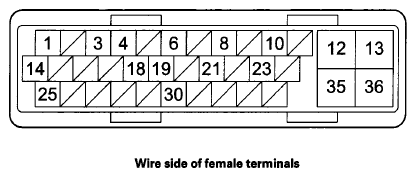

CONNECTOR TERMINALS REFERENCE CHART
| Terminal number | Wire color | Terminal sign | Description | Signal |
|---|---|---|---|---|
| 1 | RED | F-CAN L | F-CAN communication circuit | -- |
| 3 | BLU | K-LINE | Communication with HDS | |
| 4 | BRN | RR-GND | Detects right-rear wheel speed sensor signal | |
| 6 | GRN | FL-GND | Detects left-front wheel speed sensor signal | |
| 8 | RED | RL-GND | Detects left-rear wheel speed sensor signal | |
| 10 | PNK | FR-GND | Detects right-front wheel speed sensor signal | -- |
| 11 | GRN | STR-A | Detects steering angle sensor signal | |
| 12 | WHT | FSR+B | Power source for the fail-safe relay | Battery voltage (about 12 V) at all times |
| 13 | RED | MR+B | Power source for the motor relay | Battery voltage (about 12 V) at all times |
| 14 | WHT | F-CAN H | F-CAN communication circuit | -- |
| 18 | PNK | RR+B | Detects right-rear wheel speed sensor signal | |
| 19 | RED | FL+B | Detects left-front wheel speed sensor signal | |
| 21 | YEL | RL+B | Detects left-rear wheel speed sensor signal | -- |
| 23 | GRN | FR+B | Detects right-front wheel speed sensor signal | |
| 25 | WHT | WEN | Detects write enable signal | |
| 30 | YEL | IG1 | Power source for activating the system | With ignition switch ON (II): battery voltage (about 12 V) |
| 35 | BLK | GND | Ground for the VSA modulator-control unit | Continuity to ground |
| 36 | BLK | MR-GND | Ground for the pump motor | Continuity to ground |
