Remote Slot Connector View (Keyless Access)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

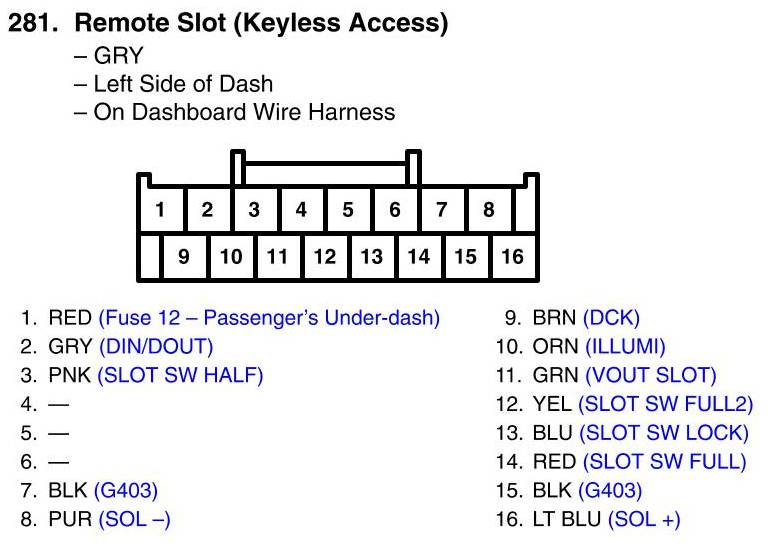

Remote Slot Connector View (Keyless Access)
