Fuse-To-Components Index

Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
1 - - WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Not Used
2 SH-AWD 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS SH-AWD Control Unit SH-AWD
3 WASHER 20A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Windshield Washer Relay
4 WIPER 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Windshield Wiper Relay
5 ODS 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Hazard Warning Switch (USA, Canada), ODS Unit, SRS Unit
6 ABS/VSA 7.5A WITHOUT KEYLESS ACCESS EPS Control Unit, Steering Angle Sensor (SH-AWD), VSA Modulator-Control Unit, Yaw Rate-Lateral Acceleration Sensor (without SH-AWD), Yaw Rate-Lateral/Longitudinal Acceleration Sensor (SH-AWD)
7 - - WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Not Used
8 STR LD 7.5A ALL MODELS ECM/PCM, Starter Cut Relay 2
9 FUEL PUMP 20A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS ECM/PCM, Electric Steering Lock Control Unit (Keyless Access), Fuel Pump Relay, Immobilizer-Keyless Control Unit (without Keyless Access), Keyless Access Control Unit (Keyless Access), Remote Slot Control Unit (Keyless Access)
10 VB SOL 10A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS ECM/PCM
11 SRS 10A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS SRS Unit
12 METER 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS AcuraLink Control Unit (XM Receiver) (AcuraLink), A/T Reverse Diode A (A/T), A/T Reverse Relay (A/T), A/T Shift Lock Solenoid/Park Pin Switch (A/T), Automatic Dimming Inside Mirror, Back-up Light Switch (M/T), Driver's MICU, Electrical Compass Unit (Electrical Compass), Gauge Control Module, Passenger's MICU, Power Mirror Control Unit, Power Seat Control Unit, Shift Lock Solenoid (A/T), TPMS Control Unit
13 ACG 15A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Alternator, Brake Pedal Position Switch, ECM/PCM, ELD Unit, Engine Mount Control Solenoid Valve, EVAP Canister Purge Valve (LEV2)
14 - - ALL MODELS Not Used
15 DRL 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Driver's MICU
16 A/C 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS A/C Compressor Clutch Relay, A/C Condenser Fan Relay, A/C Diode A, Audio-HVAC Display Unit (without Navigation), Audio/Navigation Switch Panel (Navigation), Blower Motor Relay, Climate Control Unit, Driver's Climate Control Switch, Driver's Seat Heater Switch, Fan Control Relay, Front Passenger's Climate Control Switch, Front Passenger's Seat Heater Switch, Power Mirror Switch, Power Window Master Switch, Rear Window Defogger Relay

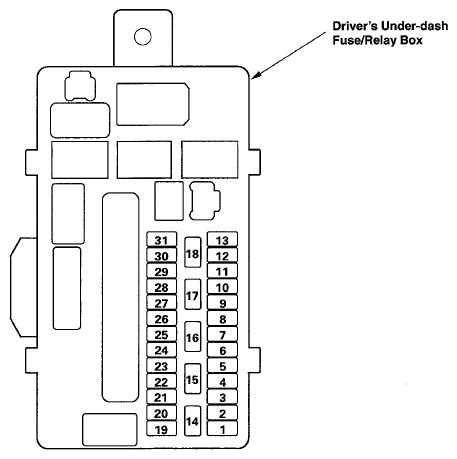

Fig 1: Driver's Under -Dash Fuse/Relay Box (6-1)
G07755105Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fuse Number Fuse Name Amps See Component or Circuit Protected Notes
17 ACC KEY LOCK 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS Driver's MICU (without Keyless Access)
18 ACCESSORY 7.5A WITHOUT KEYLESS ACCESS , KEYLESS ACCESS AcuraLink Control Unit (XM Receiver) (AcuraLink), Audio-Navigation Unit (Navigation), Audio Unit (without Navigation), Cigarette Lighter Socket Relay (Mexico), Console Accessory Power Socket Relay, Front Accessory Power Socket Relay (Keyless Access), HandsFreeLink Control Unit, HFL-Navigation Microphone (Navigation), Ignition Key Switch/Key Light (without Keyless Access), Interface Dial (Navigation), Keyless Access Control Unit (Keyless Access), Keyless Access Junction Box (Keyless Access), Navigation Display Unit (Navigation), Remote Slot Control Unit (Keyless Access)
19 DR P/SEAT (SLIDE) 20A ALL MODELS Power Seat Control Unit
20 MOON ROOF 20A ALL MODELS Moonroof Control Unit/Motor
21 DR P/SEAT (REC) 20A ALL MODELS Power Seat Control Unit
22 P/W L REAR 20A ALL MODELS Left Rear Power Window Relay
23 FR ACC SOCKET 15A ALL MODELS Cigarette Lighter Socket Relay (Mexico) (Keyless Access), Front Accessory Power Socket Relay (without Keyless Access)
24 P/WD R 20A ALL MODELS Power Window Master Switch
25 DOOR LOCK DR 15A ALL MODELS Driver's Door Unlock Relay, Door Lock Relay, Door Unlock Relay, Fuel Fill Door Opener Relay, Trunk Lid Opener Relay
26 FR FOG L 10A ALL MODELS Driver's MICU, Fog Light Control Circuit, Left Fog Light
27 SMALL (EXTR) L 10A ALL MODELS Driver's MICU, Left Front Side Marker Light, Left Front Turn Signal/Parking Light, Left Brake Light/Taillight, Right Brake Light/Taillight, Left Rear Side Marker Light, Left License Plate Light, Right License Plate Light, Right Rear Side Marker Light
28 H/L L HI 10A ALL MODELS Driver's MICU, Left Headlight (High Beam)
29 TPMS 7.5A ALL MODELS TPMS Control Unit
30 H/L L LO 15A ALL MODELS Driver's MICU, Left Headlight (Low Beam)
31 - - ALL MODELS Not Used

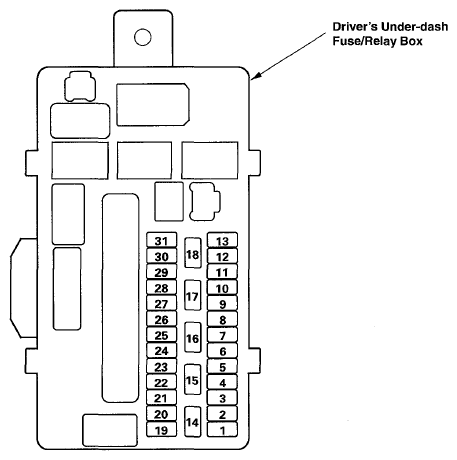

Fig 2: Driver's Under -Dash Fuse/Relay Box (6-3)
G07755106Courtesy of AMERICAN HONDA MOTOR CO., INC.
