Transfer Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Clean the areas where the transfer assembly contacts the transmission with solvent, and dry with compressed air.

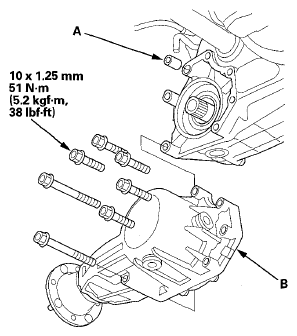

Install the dowel pin (A) in the transmission, and install the transfer assembly (B) on the transmission.

Fig 1: Dowel Pin And Transfer Assembly With Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the No. 1 propeller shaft (A) to the transfer companion flange (B) by aligning the reference marks (C) you made.

Fig 2: No. 1 Propeller Shaft And Transfer Companion Flange With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Secure the transfer breather hose bracket (A) on the transfer assembly with the bolt, and install the breather hose (B) over the breather pipe (C) with facing the dot mark (D) to the rear side of the vehicle.

Fig 3: Transfer Breather Hose Bracket, Breather Hose And Breather Pipe With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install exhaust pipe A (see EXHAUST PIPE AND MUFFLER REPLACEMENT ).
Check the fluid level, and refill the transfer assembly with transfer fluid (hypoid gear oil), if necessary (see TRANSFER ASSEMBLY FLUID INSPECTION AND REPLACEMENT ).
Refill the transmission with MTF (see TRANSMISSION FLUID INSPECTION AND REPLACEMENT ).
Test-drive the vehicle.
