Exploded view

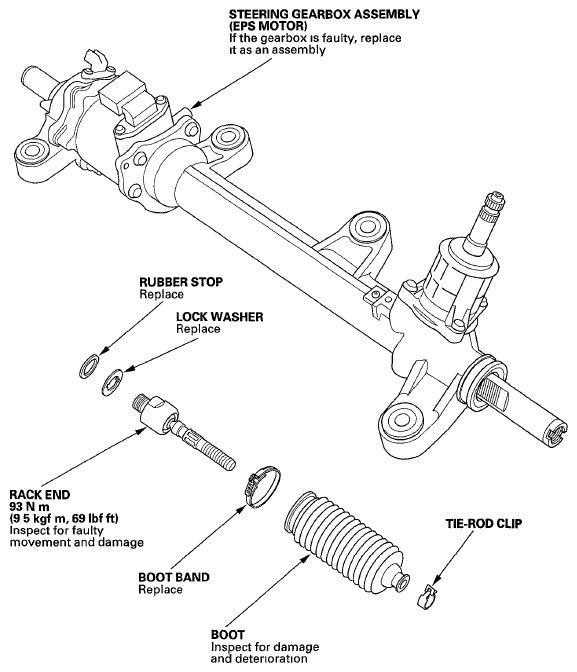

Fig 1: Exploded View Of Rack End
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
