EPS Control Unit Operation: Notes

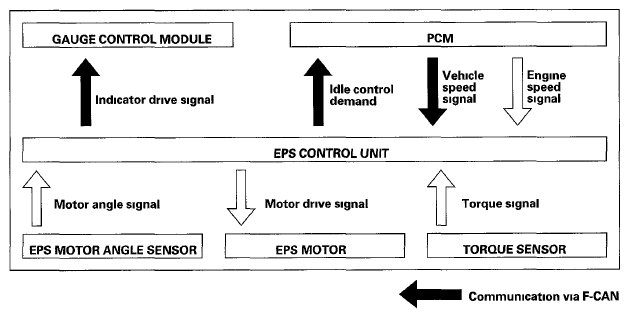

The EPS control unit controls the EPS motor by these signals
- Vehicle speed signal (for PCM)
- Engine speed signal (for PCM)
- Torque sensor signal
At idle or low vehicle speeds, the EPS control unit sends a signal to the PCM to increase the engine idle speed to prevent the engine from stalling
If the EPS control unit detects a failure in the system, it stores a DTC and sends a signal to the gauge control
