Under-Hood Fuse/Relay Box - Connector-to-Fuse/Relay Box Index (Relay Control Module/Relay Block)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

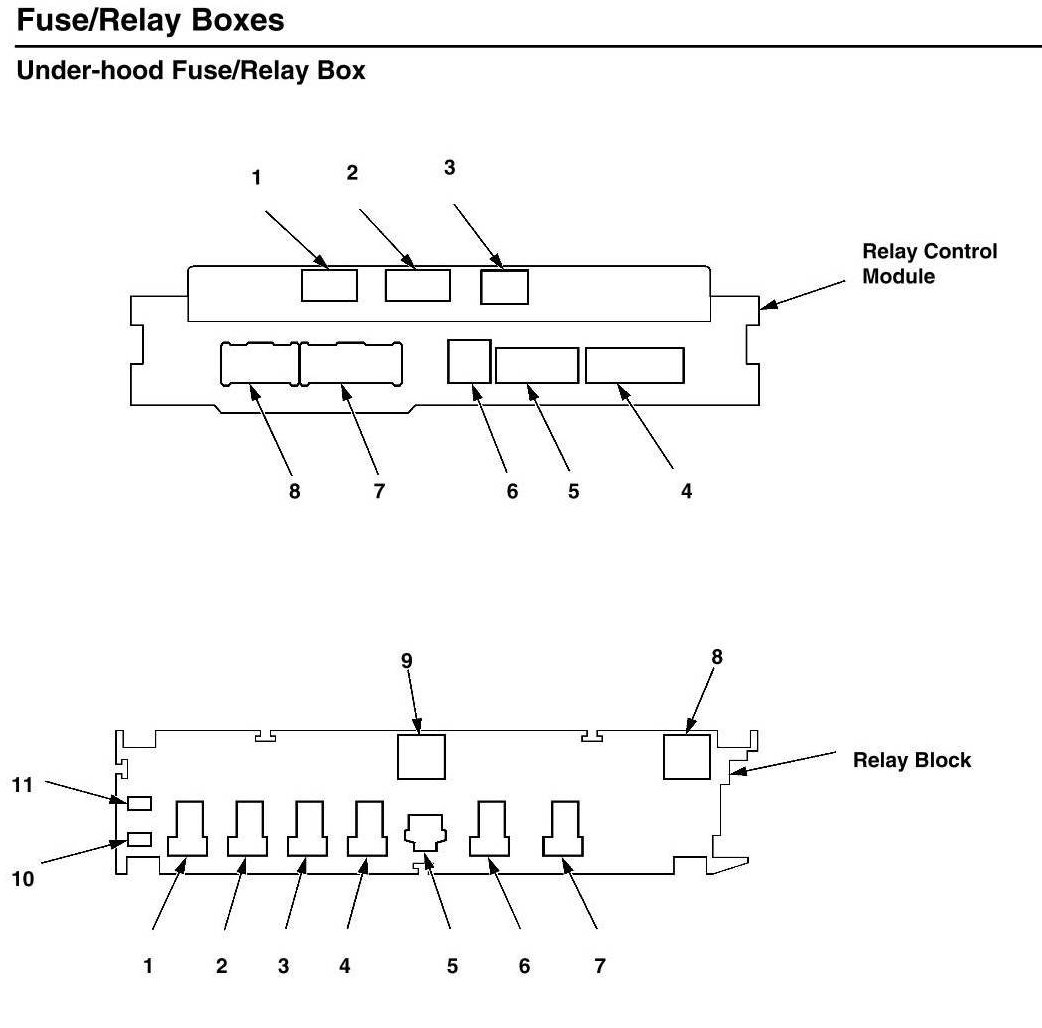

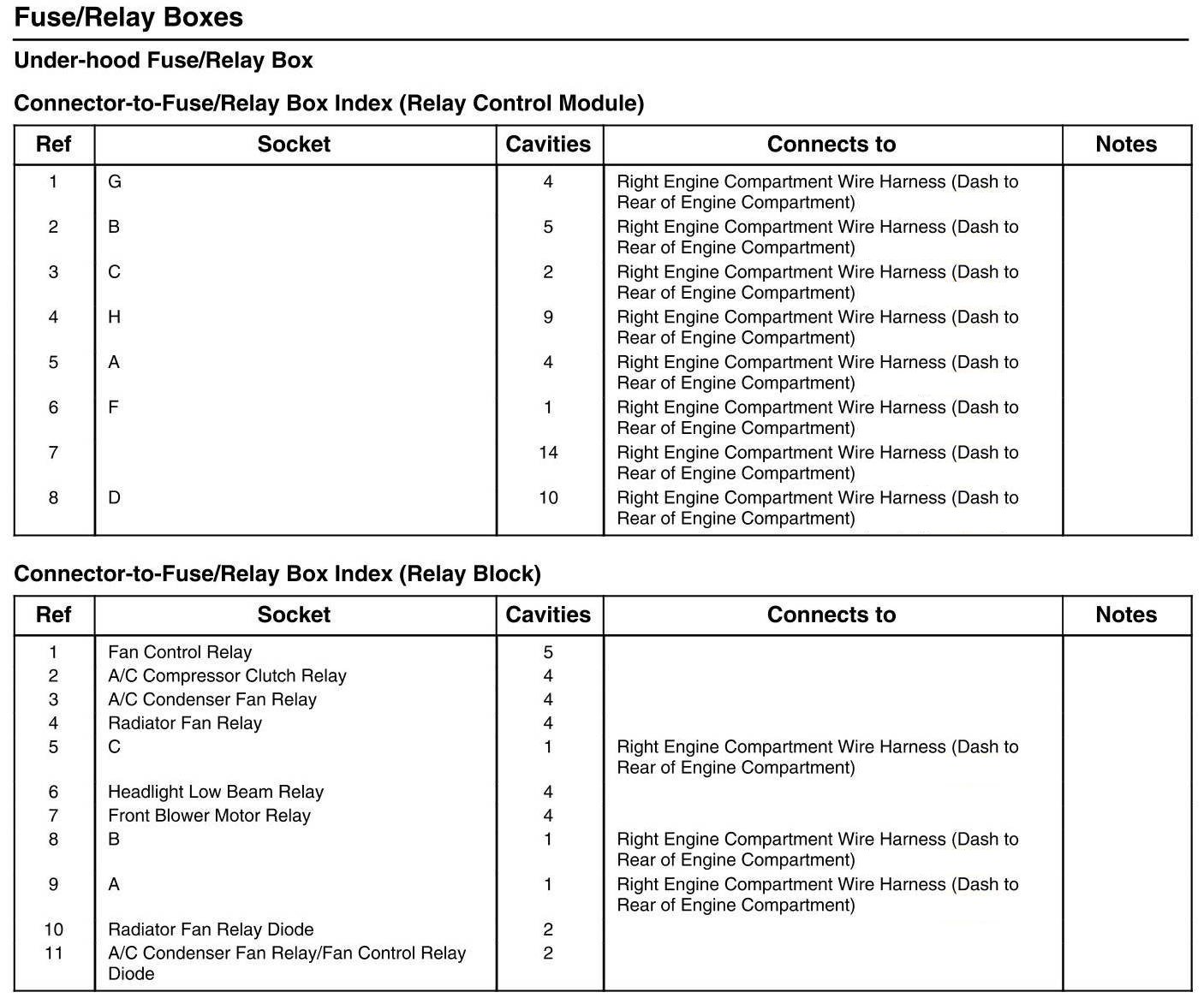

Under-Hood Fuse/Relay Box - Connector-to-Fuse/Relay Box Index (Relay Control Module/Relay Block)
