Front Subframe Alignment

NOTE:

Loosely install new front subframe mounting bolts, then tighten the bolts to the specified torque in the sequence shown.
After mounting the subframe and brackets loosely, align all of the positioning holes in the subframe, in the subframe front bracket, and in the body using a alignment pin as a guide, then tighten the bolts.
After reinstalling all removed parts, check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).

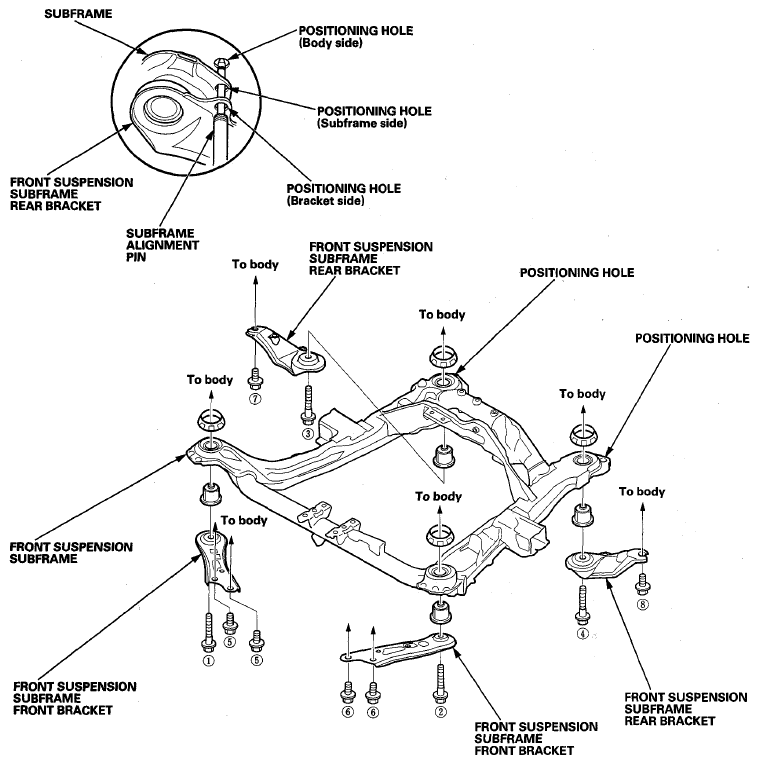

Fig 1: Aligning All Of Positioning Holes In Front Subframe
Courtesy of AMERICAN HONDA MOTOR CO., INC.
