ATF Temperature Sensor Connector End View

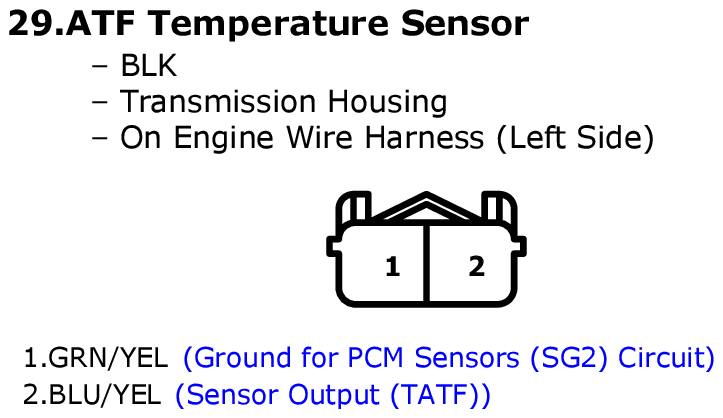

Fig 1: ATF Temperature Sensor Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
