Roof and Console

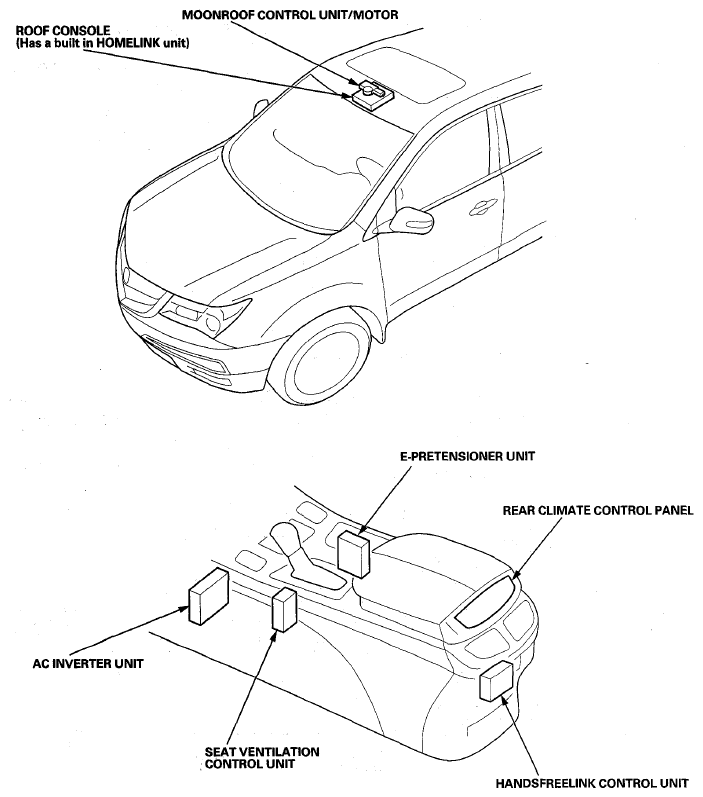

Fig 1: Identifying Relay And Control Unit Locations - Roof And Console
Courtesy of AMERICAN HONDA MOTOR CO., INC.
