Seat Belts: Inspection: Retractor

Before installing the retractor, check that the seat belt can be pulled out freely.
Make sure that the seat belt does not lock when the retractor (A) is leaned slowly up to 15° from the mounted position. The seat belt should lock when the retractor is leaned over 40°. Do not attempt to disassemble the retractor.

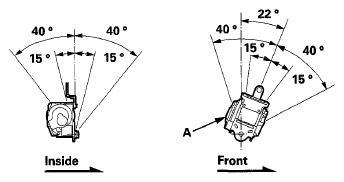

Front

Fig 1: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Front
Courtesy of AMERICAN HONDA MOTOR CO., INC.

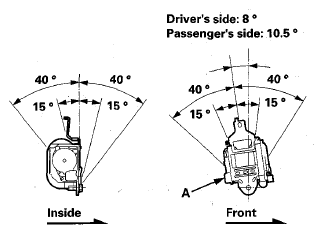

Second row

Fig 2: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Second Row
Courtesy of AMERICAN HONDA MOTOR CO., INC.

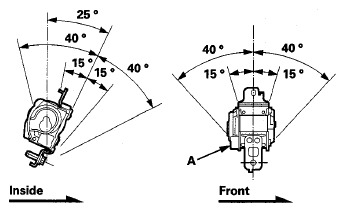

Center Second row

Fig 3: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Center Second Row
Courtesy of AMERICAN HONDA MOTOR CO., INC.

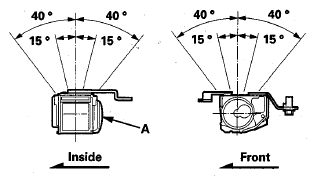

Third row

Fig 4: Identifying Correct Leaning Position Of Retractor For Seat Belt Locking - Third Row
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Replace the seat belt with a new assembly if there is any abnormality. Do not disassemble any part of the seat belt for any reason.
