Front Subframe Torque

After removing the subframe mounting bolts and front suspension subframe rear bracket mounting bolts, be sure to replace them with new ones.

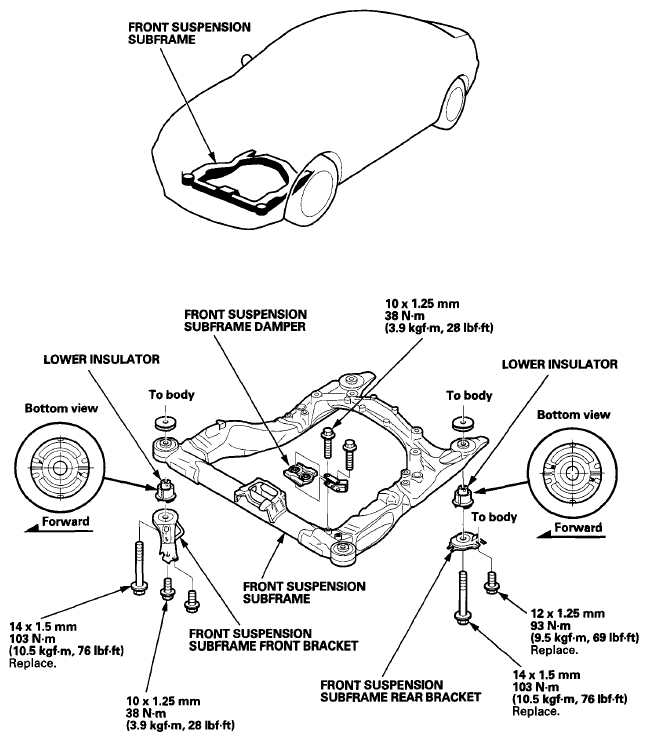

Fig 1: Front Suspension Subframe With Torque Specifications
G07354635Courtesy of AMERICAN HONDA MOTOR CO., INC.
