Security Hood Switch Test

  1. Remove the hood latch cover. See step 2 on HOOD LATCH REPLACEMENT .
  2. Disconnect the 2P connector (A) from the hood switch (B).

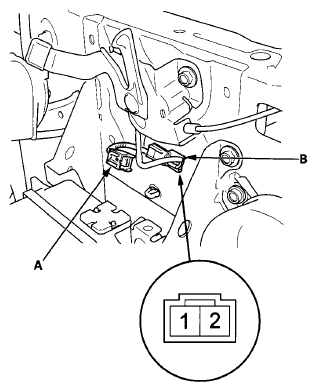

    Fig 1: Disconnecting 2P Connector From Hood Switch
    G07354898Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.

    There should be continuity between terminals No. 1 and No. 2 when the hood is opened (latch released). There should be no continuity between terminals No. 1 and No. 2 when the hood is closed (latch pushed down).

  4. If the continuity is not as specified, replace the security hood switch.
