TCS (Traction Control System) Features

When a drive wheel loses traction on a slippery road surface and starts to spin, the VSA modulator-control unit applies brake pressure to the spinning wheel, and sends an engine torque control request to the PCM to slow the spinning wheel, and keep traction.

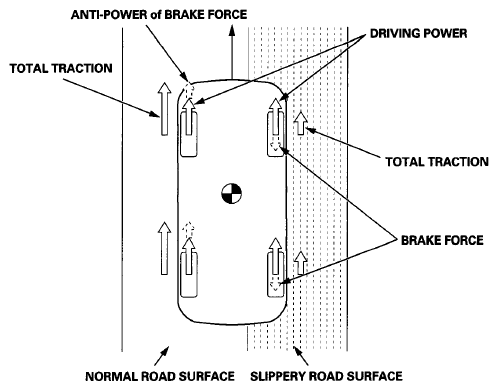

Fig 1: Traction Control System Operation Diagram
G07363283Courtesy of AMERICAN HONDA MOTOR CO., INC.
