Driving Position Memory Switch Connector End View (View 304)
GRN
Driver's door
On driver's door wire harness A

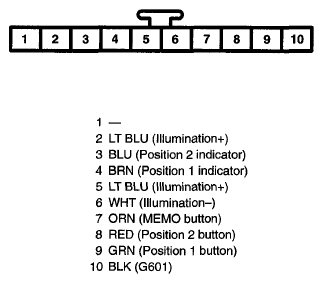

Fig 1: Driving Position Memory Switch Connector Terminals (View 304)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
