Ignition Switch Control Unit Connector End View (View 307)
GRN
Under steering column cover
On dashboard wire harness (around the steering column)

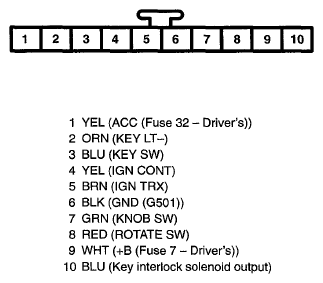

Fig 1: Ignition Switch Control Unit Connector Terminals (View 307)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
