VSA Modulator-Control Unit Connector End View (View 423)
BLK/WHT
Right side of engine compartment
On engine compartment wire harness (right branch)

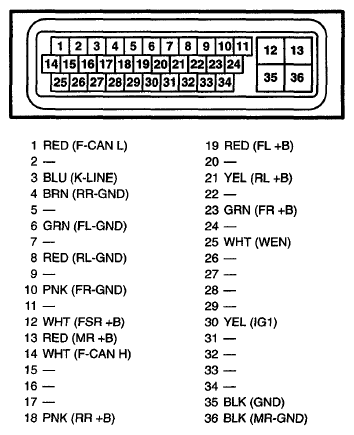

Fig 1: VSA Modulator-Control Unit Connector Terminals (View 423)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
