Component Location Index

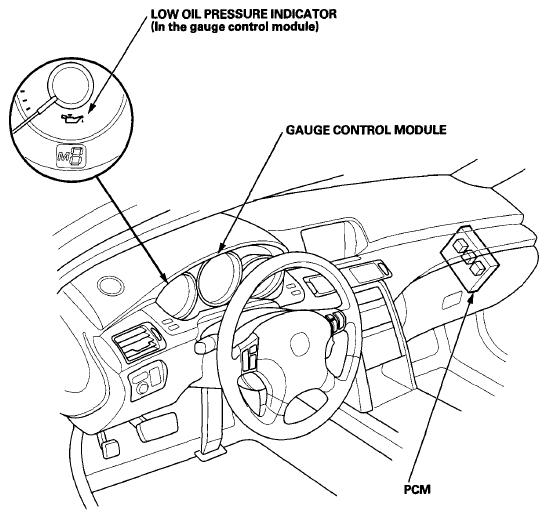

Fig 1: Identifying Low Oil Pressure Indicator And Gauge Control Module
G07353695Courtesy of AMERICAN HONDA MOTOR CO., INC.

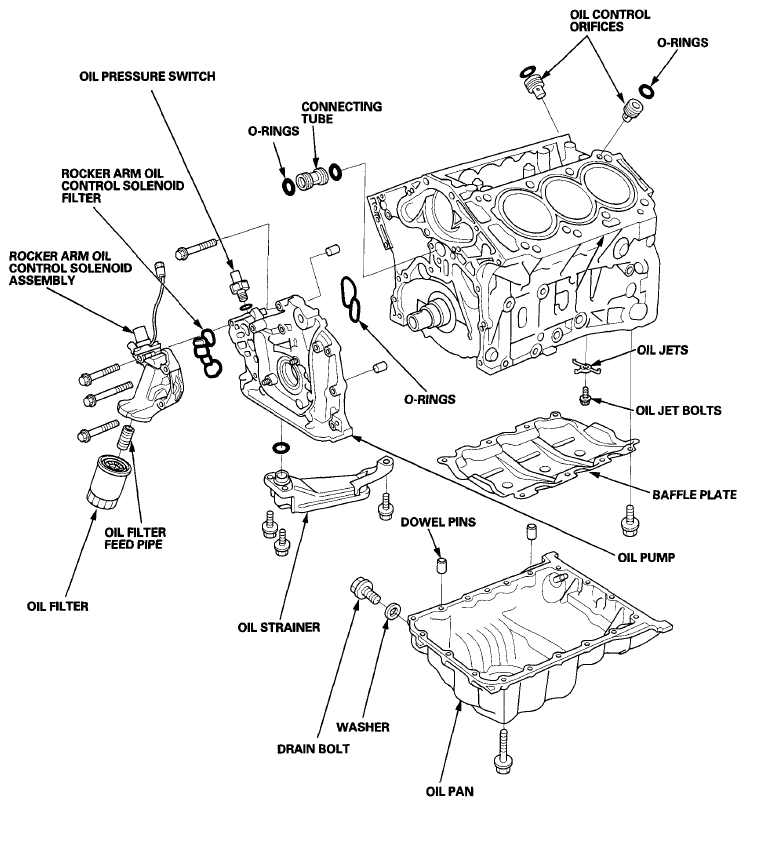

Fig 2: Exploded View Of Engine Lubrication Components
G07353696Courtesy of AMERICAN HONDA MOTOR CO., INC.
