Climate Control Door Positions: Notes

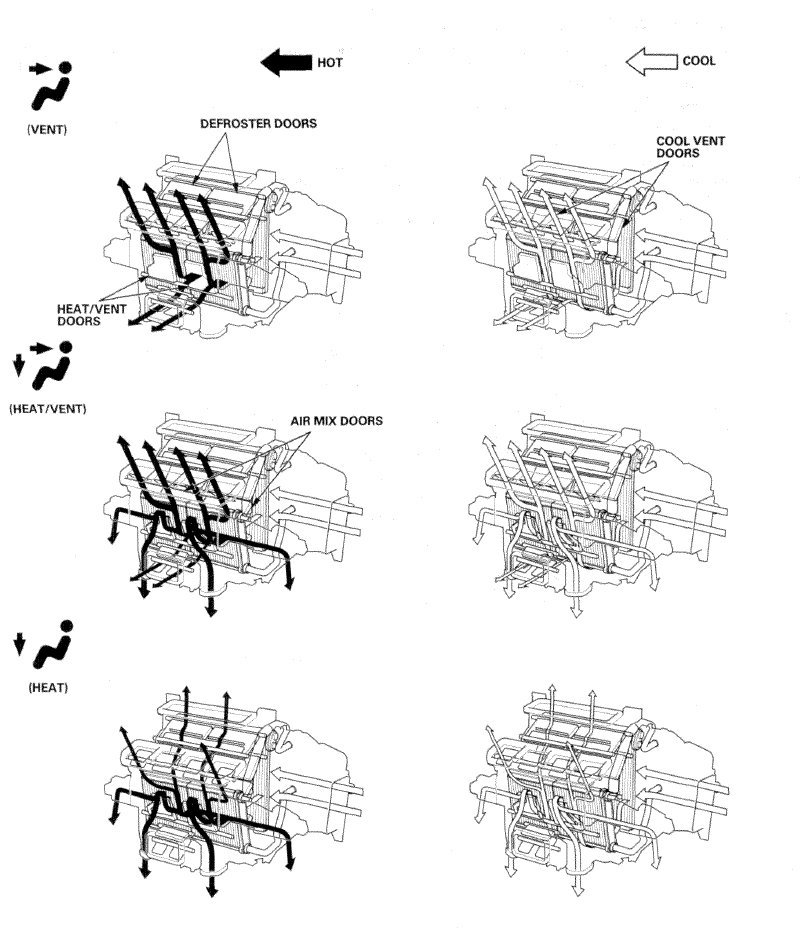

Fig 1: Identifying Climate Control Door Positions (1 Of 2)
G07354658Courtesy of AMERICAN HONDA MOTOR CO., INC.

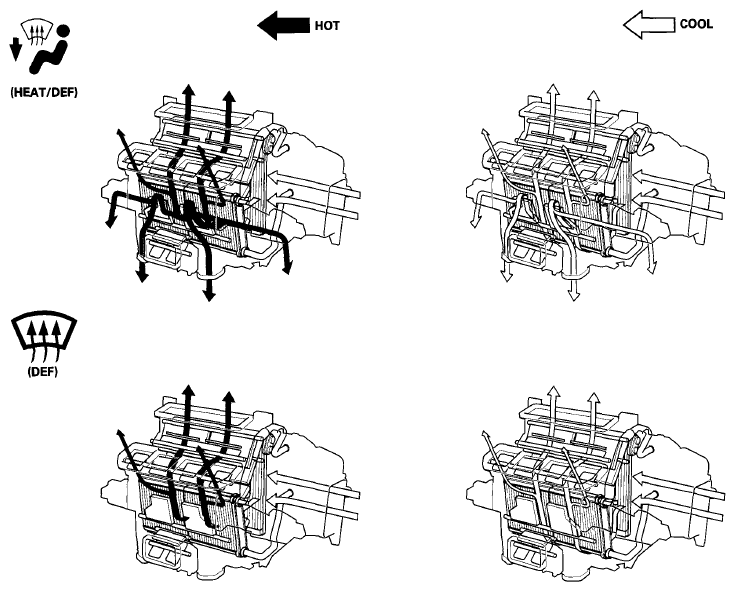

Fig 2: Identifying Climate Control Door Positions (2 Of 2)
G07354659Courtesy of AMERICAN HONDA MOTOR CO., INC.
