Steering Column Removal and Installation: Installation

Install the steering column in the reverse order of removal, and note these items:
- Make sure the wires are not caught or pinched by any parts.
- Take care not to let the sliding capsules fall out of position during column installation.
Center the steering rack within its stroke.

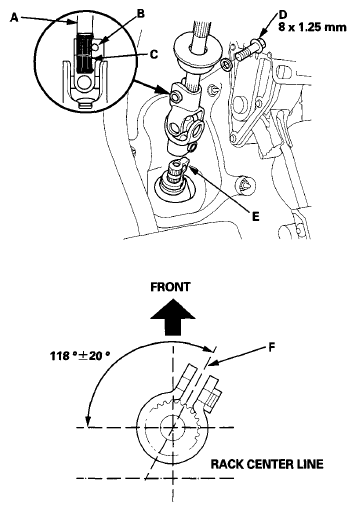

Insert the upper end of the steering joint onto the steering shaft (A) (line up the bolt hole (B) with the flat portion (C) on the shaft), and loosely install the upper steering joint bolt (D).

Fig 1: Inserting Upper End Of Steering Joint Onto Steering Shaft
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Slip the lower end of the steering joint onto the pinion shaft.
NOTE:
- Pinion shaft with center guide: Install the steering joint by aligning the center guide (E).
- Pinion shaft without center guide: Position the steering column by aligning the gap (F) within the angle.

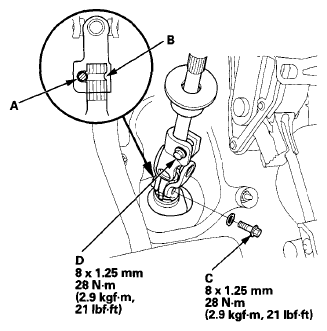

Align the bolt hole (A) on the steering joint with the groove (B) around the pinion shaft, then loosely install the lower steering joint bolt (C).

Fig 2: Aligning Bolt Hole On Steering Joint With Groove With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull on the steering joint to make sure that the steering joint is fully seated, then tighten the lower joint bolt to the specified torque.
Tighten the upper steering joint bolt (D) to the specified torque.
Install steering joint cover A.

Fig 3: Installing Steering Joint Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the steering wheel (see STEERING WHEEL INSTALLATION ) and driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
Reconnect all electrical connectors.
Install the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
Install the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Do the battery terminal reconnection procedure (see RECONNECTION ), and do these tasks:
- Turn the ignition switch to ON (II) and check that the SRS indicator comes on for about 6 seconds and then goes off.
- Make sure the horn and the turn signal switches work properly.
- Make sure the steering wheel switches work properly.
After installation, do these checks:
- Check the steering wheel spoke angle. If the steering spoke angles to the right and left are not equal (steering wheel and rack are not centered), correct the engagement of the joint/pinion shaft splines.
- Set the steering column to the center tilt position, then do the front toe inspection (see FRONT TOE INSPECTION/ADJUSTMENT ).
- Do the VSA neutral position memorization procedure (see VSA SENSOR NEUTRAL POSITION MEMORIZATION ).
