Left BSI Radar Unit (BSI System) Connector View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

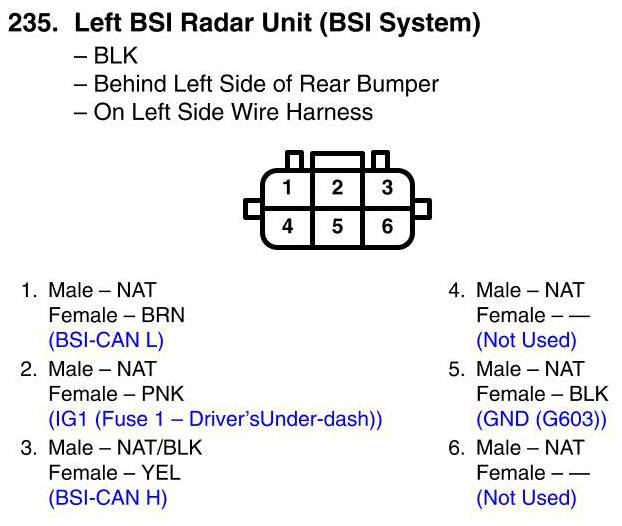

Left BSI Radar Unit (BSI System) Connector View
