Cruise Control Combination Switch Test/Replacement

There are SRS components located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), in the SRS before doing repairs or service.

1. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
2. Remove the steering wheel rear cover (see STEERING WHEEL REMOVAL ).
3. Disconnect the cable reel subharness connector (A), then remove the steering wheel trim/cruise control combination switch (B).
   Fig 1: Identifying Cable Reel Subharness Connector And Steering Wheel Trim/Cruise Control Combination Switch

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Check for continuity between the terminals in each cruise control combination switch position according to the table:
   • If there is continuity, and it matches the table, but the cruise control combination switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or both positions, replace the steering wheel trim/cruise control combination switch.

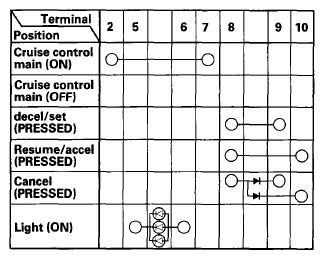

     Fig 2: Identifying Continuity Table

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Install the cruise control combination switch in the reverse order of removal.
