Without Navigation

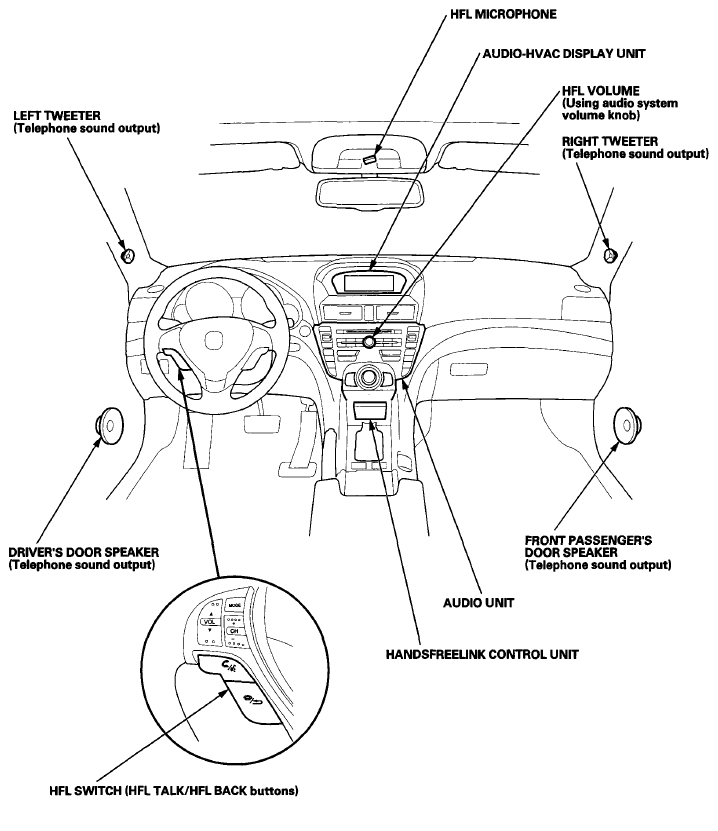

Fig 1: HandsFreeLink System Components Location (2 Of 2)

G08071888

Courtesy of AMERICAN HONDA MOTOR CO., INC.
