Side View

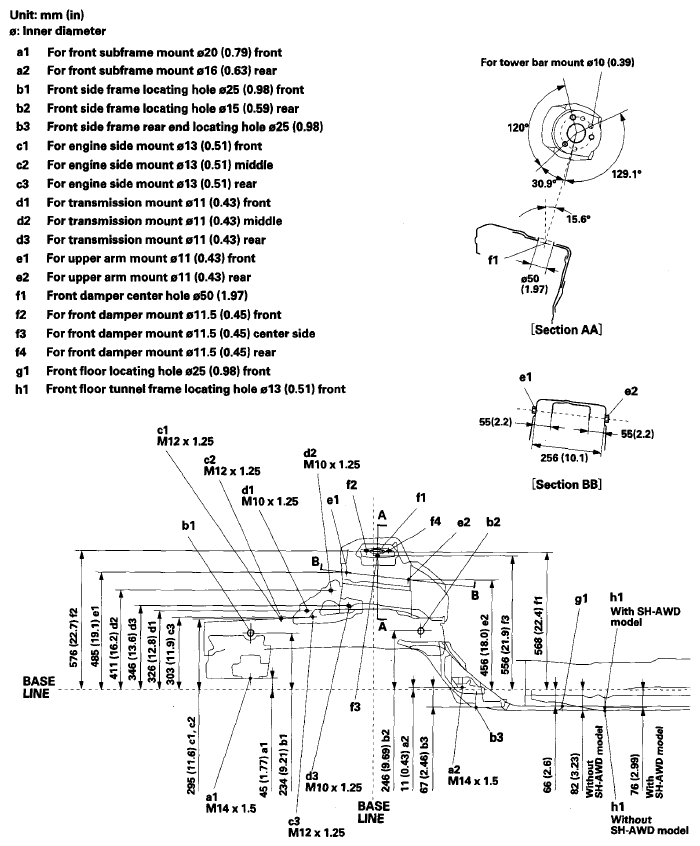

Fig 1: Frame Repair Chart (Left Side View)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

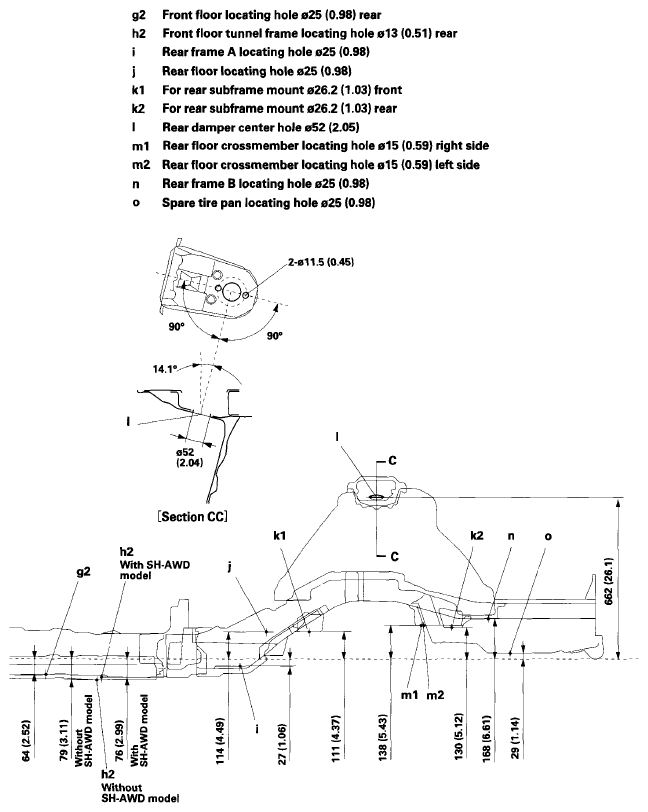

Fig 2: Frame Repair Chart (Right Side View)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
