Rear Subframe Torque

NOTE:
  • Install the rear subframe by aligning the installation positioning holes and positioning holes with the subframe alignment pin.
  • Always replace any removed subframe mounting bolts with new ones.

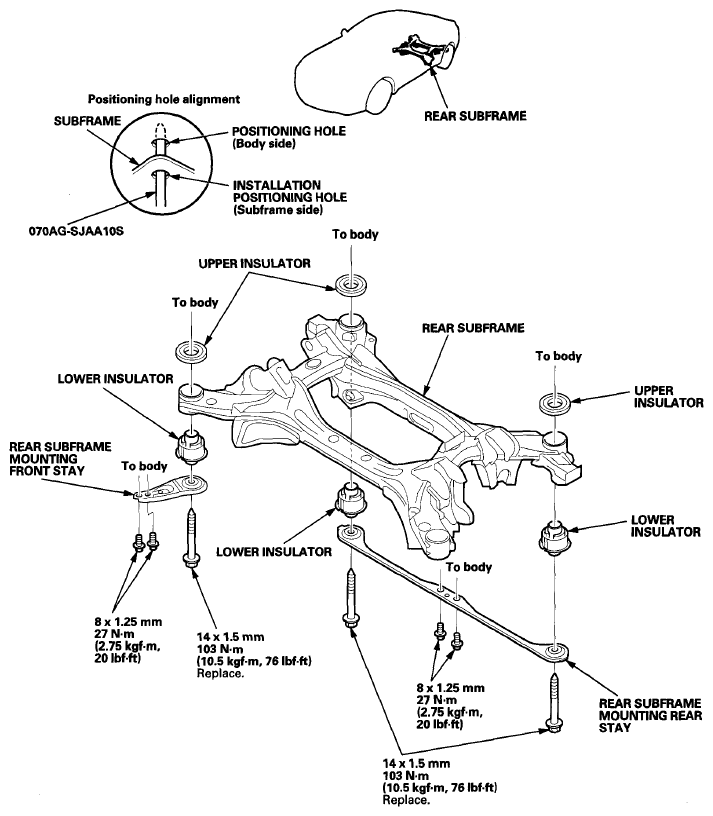

    Fig 1: Rear Subframe Torque And Related Components Location With Torque Specifications
    G08070923Courtesy of AMERICAN HONDA MOTOR CO., INC.
