Switch Test/Replacement

Remove the center console panel (see CENTER CONSOLE PANEL REMOVAL/INSTALLATION ).
Disconnect the 16P [12P] connector from the seat ventilation switch (A).
[]: Front passenger's seat ventilation switch

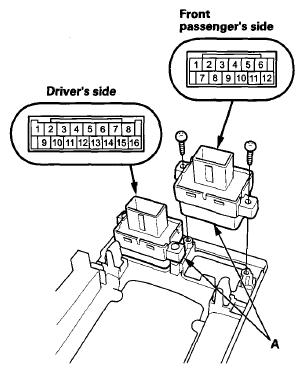

Fig 1: Identifying Seat Ventilation Switch With Connector End Views
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and the switch.
Check for continuity between the terminals in each switch position according to the table.
NOTE:
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting on the digital volt/ohm meter to check the diode bias.
- Be careful of this characteristic; a diode is one that conducts fully in one direction (forward) and not at all in the opposite direction (reverse).

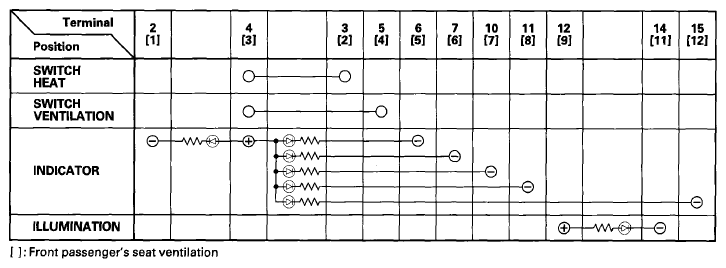

Fig 2: Identifying Continuity Reference Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

[]: Front passenger's seat ventilation
If the continuity check is not as specified, replace the seat ventilation switch.
Install the parts in the reverse order of removal.
