BSI Control Unit Removal/Installation

  1. Remove the left trunk side trim panel (see TRIM REMOVAL/INSTALLATION - TRUNK AREA ).
  2. Remove the BSI control unit (A).
    1. Disconnect the BSI control unit 16P connector (B).
    2. Loosen the bolts.

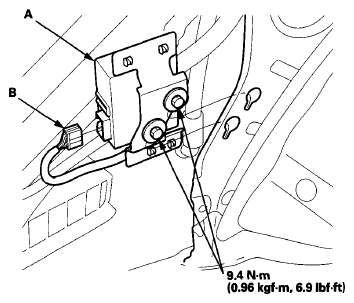

      Fig 1: BSI Control Unit And 16P Connector With Torque Specifications
      G08068464Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the BSI control unit in the reverse order of removal.
