With Keyless Access System-A/T model

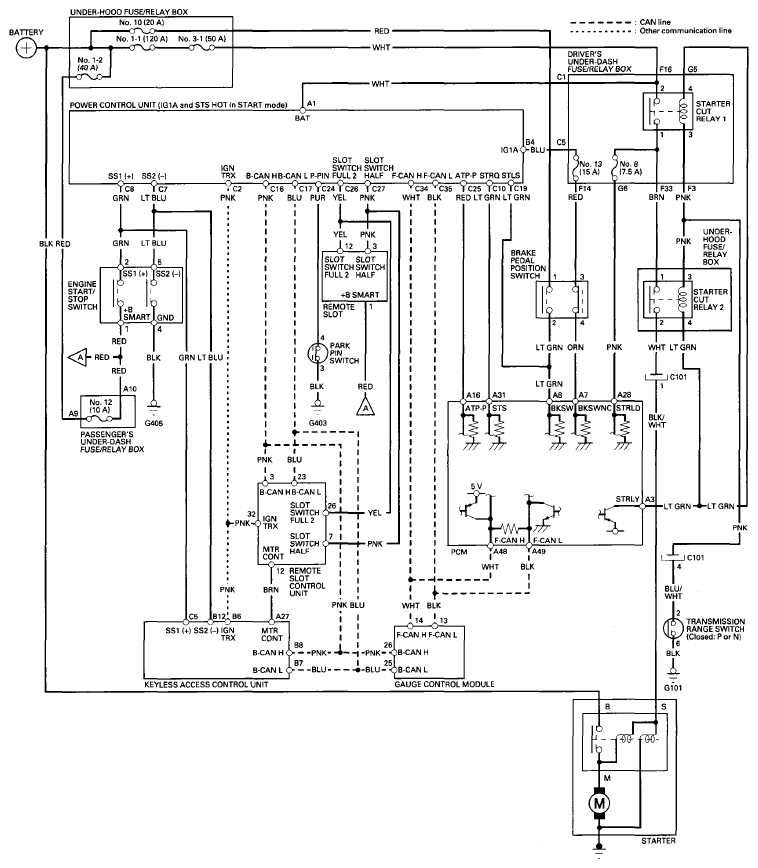

Fig 1: Starting System - Circuit Diagram (With Keyless Access System-A/T Model)
G08068518Courtesy of AMERICAN HONDA MOTOR CO., INC.
