Exploded View

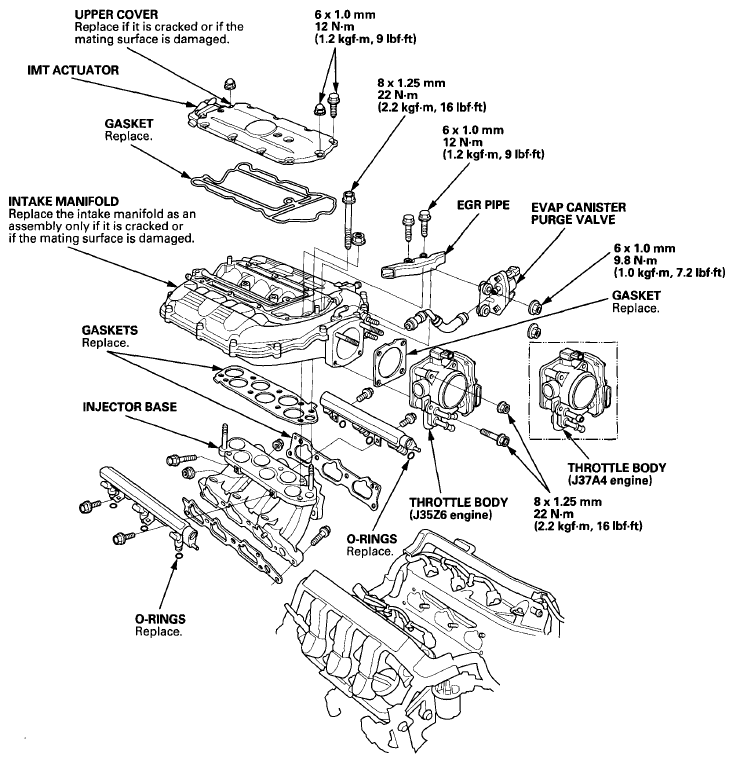

Fig 1: Exploded View Of Intake Manifold With Torque Specifications
G08069201Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Refer to the Exploded View if needed during this procedure.
