Passenger's Mode Control Motor Replacement: Installation

Release the lock (A), then remove the motor lever (B) from the mode control motor (C).
NOTE: Before installing the mode control motor, plug in the 7P connector, and set the passenger's side climate control mode to VENT. Check that the motor output shaft is lined up as indicated (D).

Fig 1: Identifying Lock, Motor Lever And Mode Control Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Align the position of the damper lever pins (A), then install the motor lever (B).

Fig 2: Identifying Damper Lever Pins And Motor Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.

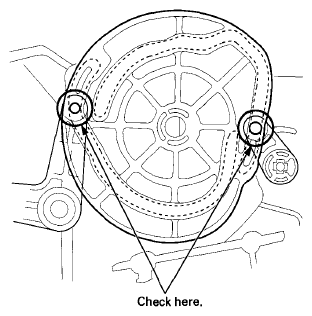

Make sure the damper lever pins in the motor lever are visible through the holes.

Fig 3: Checking Damper Level Pins In Motor Lever Through Holes
Courtesy of AMERICAN HONDA MOTOR CO., INC.

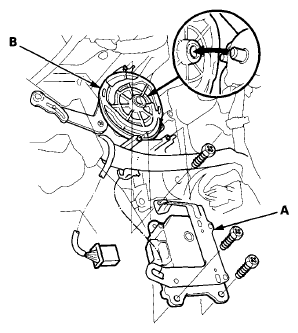

Install the mode control motor (A) while holding the motor lever (B).

Fig 4: Identifying Mode Control Motor And Motor Lever
Courtesy of AMERICAN HONDA MOTOR CO., INC.
After installation, make sure the motor runs smoothly.
