Retractable Master Key Does Not Lock In Its Extended Position (10-008)

RETRACTABLE MASTER KEY DOES NOT LOCK IN ITS EXTENDED POSITION

TECHNICAL SERVICE BULLETIN

REVISION SUMMARY

Under VEHICLES AFFTECTED and PARTS INFORMATION, 2011-12 models were added.

SYMPTOM

The retractable master key does not lock in its extended position.

PROBABLE CAUSE

The release button and the collar on the master key become worn after rough use.

VEHICLES AFFECTED

Supersedes 10-008, dated April 26, 2010

2007-12 MDX  - ALL

2007-12 RDX  - ALL

2007-08 TL  - ALL

2009-12 TL  (without push button start)

2009-12 TSX  - ALL

2010-12 ZDX  (without push button start)

CORRECTIVE ACTION

Replace the key case, cut the new key to match the original, then rewrite the transponder code into the immobilizer control unit with the HDS.

PARTS INFORMATION

Key Case  (does not include transmitter or cover):

2007-09 MDX  - Driver 1

P/N 35121-STX-305

2007-09 MDX  - Driver 2

P/N 35121-STX-306

2010-12 MDX  - Driver 1

P/N 35120-STX-305

2010-12 MDX  - Driver 2

P/N 35120-STX-306

2007 RDX  -

P/N 35120-STK-305

2008-12 RDX  - Driver 1

P/N 35121-STX-305

2008-12 RDX  - Driver 2

P/N 35121-STX-306

2007-08 TL  - Driver 1

P/N 35120-SEP-305

2007-08 TL  - Driver 2

P/N 35120-SEP-306

2009-12 TL  (without push button start) - Driver 1

P/N 35120-TK4-305

2009-12 TL  (without push button start) - Driver 2

P/N 35120-TK4-306

2009-12 TSX  - Driver 1

P/N 35120-TL0-307

2009-12 TSX  - Driver 2

P/N 35120-TL0-308

2010-12 ZDX  (without push button start) - Driver 1

P/N 35120-TK4-305

2010-12 ZDX  (without push button start) - Driver 2

P/N 35120-TK4-306

WARRANTY CLAIM INFORMATION

The normal warranty applies.

Operation Number: 1161D3 (one or more keyless remote modules)

Flat Rate Time: 0.4 hour

Failed Part: P/N 72147-S0K-A23

Defect Code: 03217

Symptom Code: 08201

Skill Level: Repair Technician

REPAIR PROCEDURE

1. Using a #0 Phillips screwdriver, remove the screw from the key case. Remove the cover and the key transmitter.

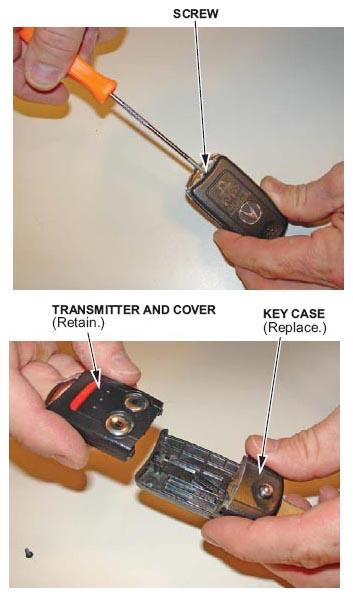

   Fig 1: Key Case Cover & Transmitter


2. Follow the Decode and Copy instructions on the Matrix X key cutter to cut a new key with the new key case. This allows you to use the original key without needing the key code.
3. Assemble the cover and the transmitter onto the new key case, and install the screw.
4. To add a key with the HDS, you need these items:
   • The new master key
   • First password (this five character code is available on the iN. Go to SERVICE,  select Vehicle  Information from the left column, then select Immobilizer Code Inquiry.
   • HDS with software 2.020.018 or later.
   NOTE: Make sure the market, the date, and the time on the HDS setup screen are correct. Select the F12 key in the upper right corner to get the Set-up Details screen. Make sure Market is set to USA. Select the time display in the lower right corner to get the Date/Time Properties pop-up window. Make sure the date and time are correct. For details, refer to the HDS Set-up Instructions listed under Tool Information in ISIS.
5. Connect the HDS to the DLC (data link connector).
6. Insert the client's original key (now without the keyless transmitter) into the ignition switch, and turn the switch to ON (II). Turn on the HDS.
7. At the screen prompts, enter the VIN and the odometer reading, then verify the correct date and time.
8. From the system Selection screen, select IMMOBI  .
9. From the Immobilizer Test Mode screen, select Immobilizer Setup  .
10. From the Immobilizer Setup screen, select Add and Delete Keys  .
11. From the Add and Delete Keys screen, select Add 1 Key  .
12. From the Add 1 Key screen, select Begin to Add 1 Key  .
    NOTE: If there are six keys already in memory, you'll need to stop and do Delete or Add Multiple Keys, but that requires all of the client's keys. Any key not present will no longer start the engine.
13. From the first password screen, enter the first password, then follow the screen prompts. When you are finished, turn the ignition switch to LOCK (0), then turn off and disconnect the HDS.
