View 207 - Driver's Power Seat Rear Up-Down Motor/Position Sensor Connector View (DPMS)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

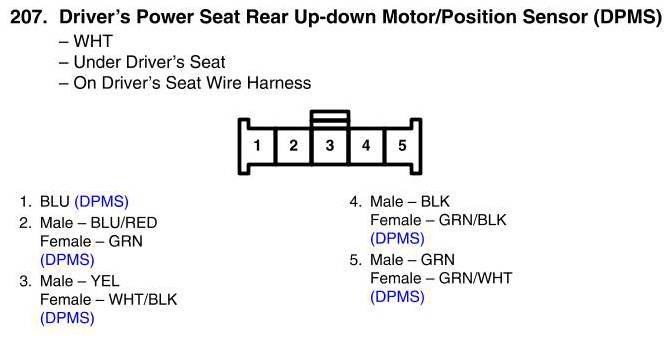

View 207 - Driver's Power Seat Rear Up-Down Motor/Position Sensor Connector View (DPMS)
