Audio-HVAC Display Unit Connector View (Without Navigation)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

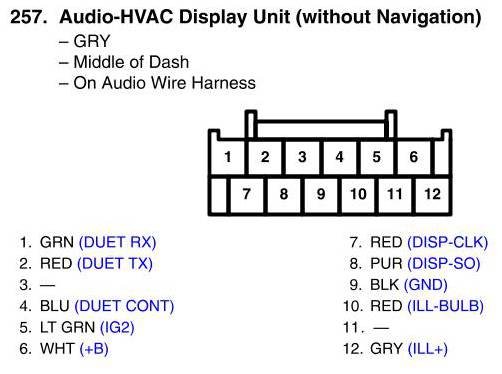

Audio-HVAC Display Unit Connector View (Without Navigation)
