ECM/PCM Inputs and Outputs

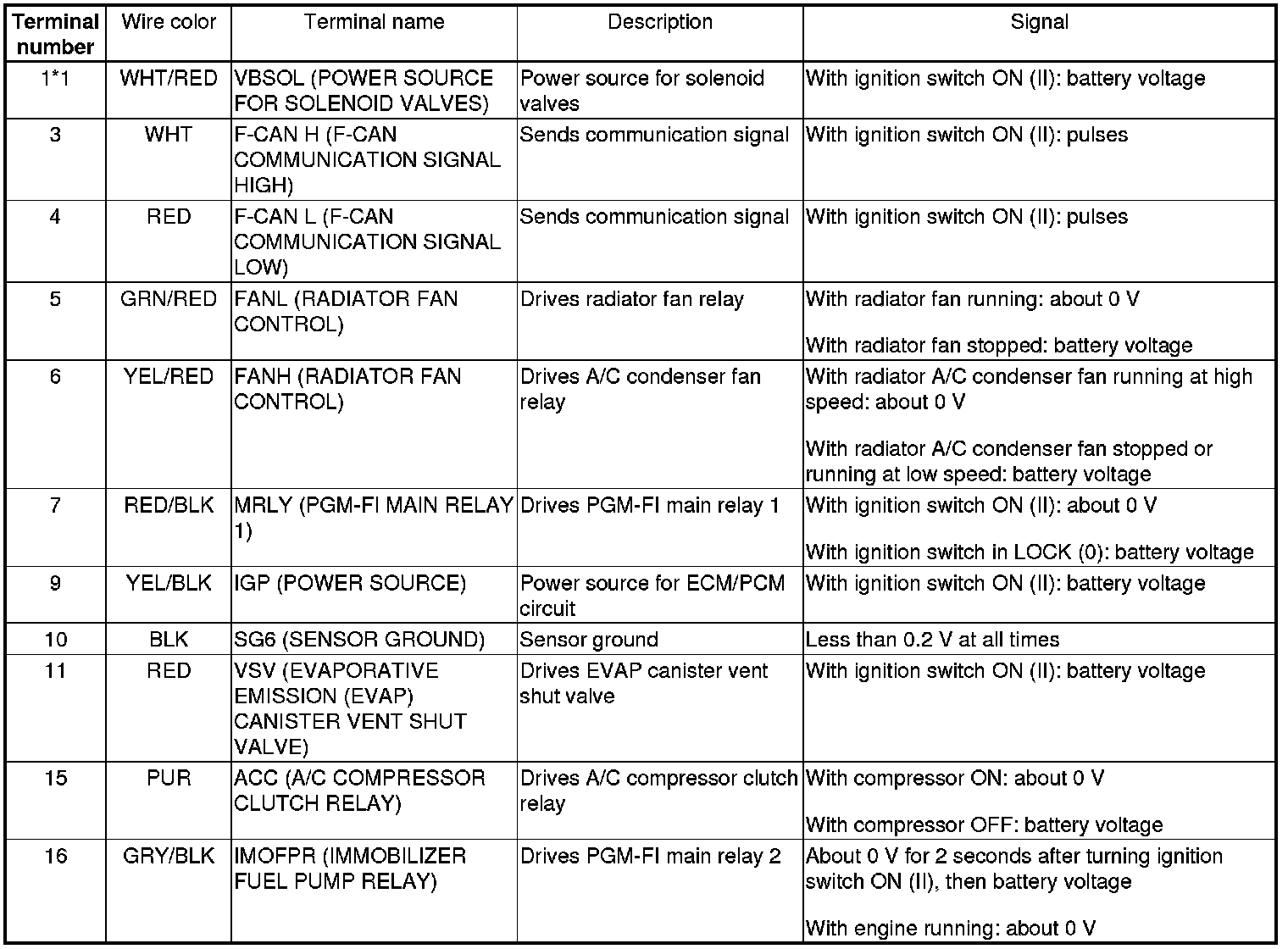

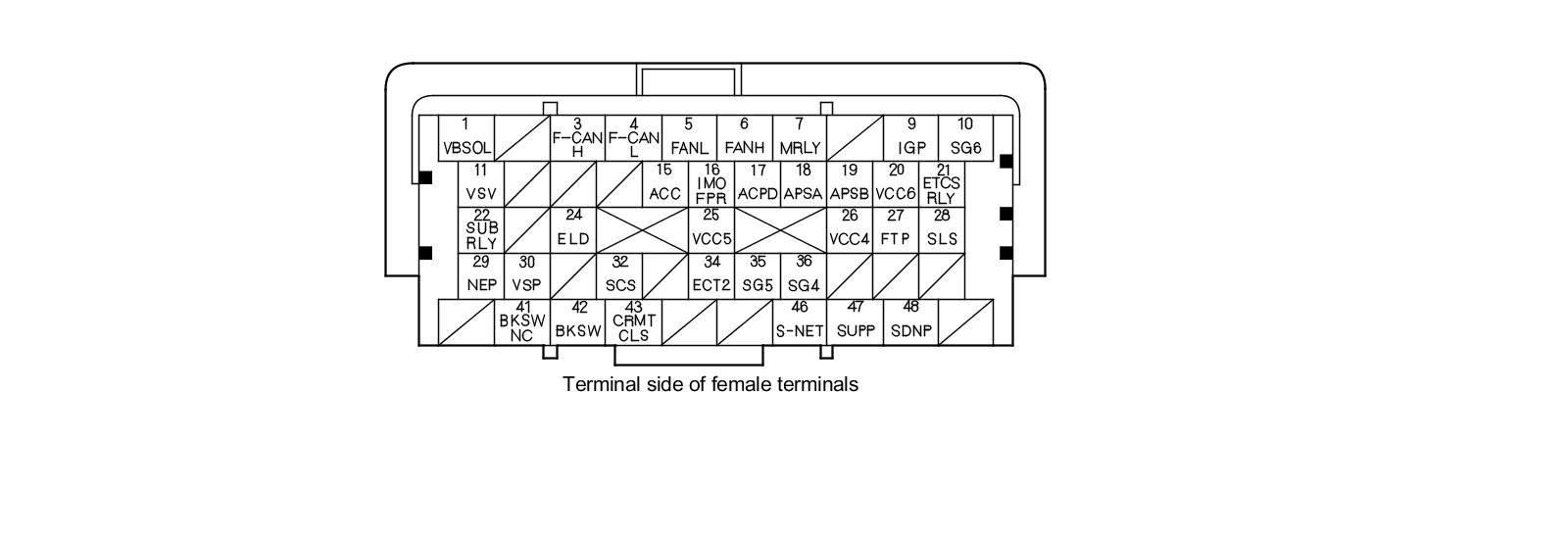

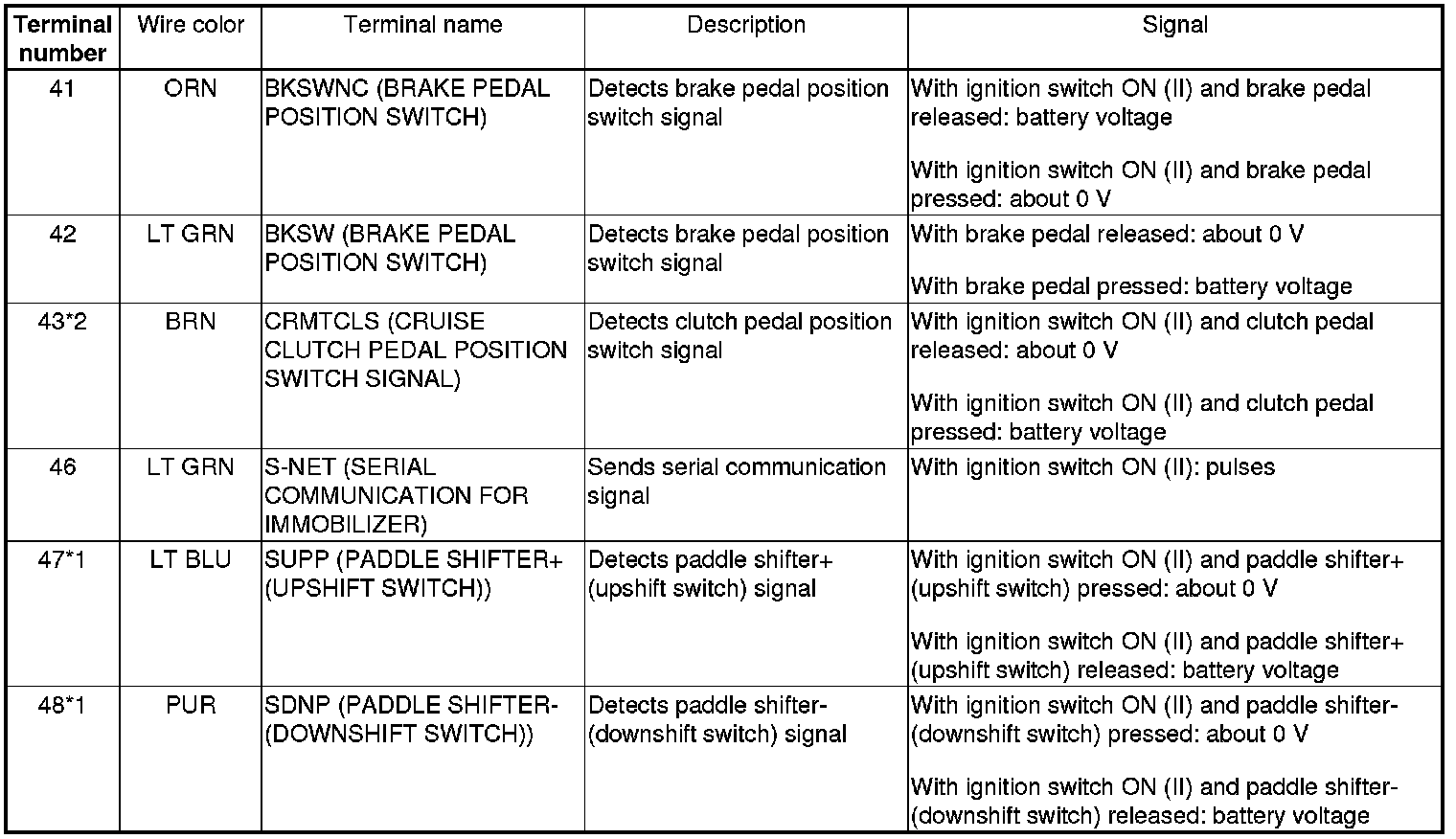

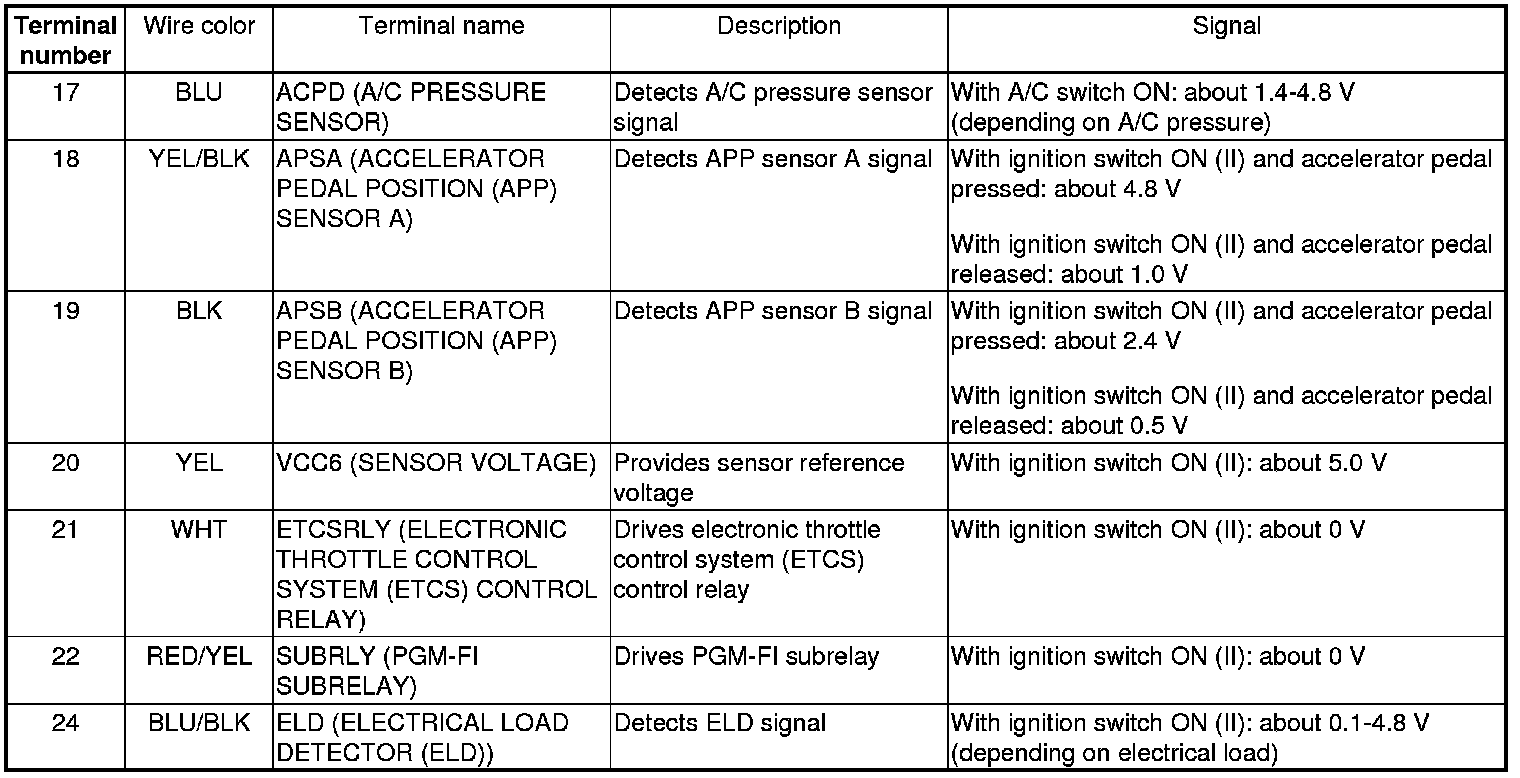

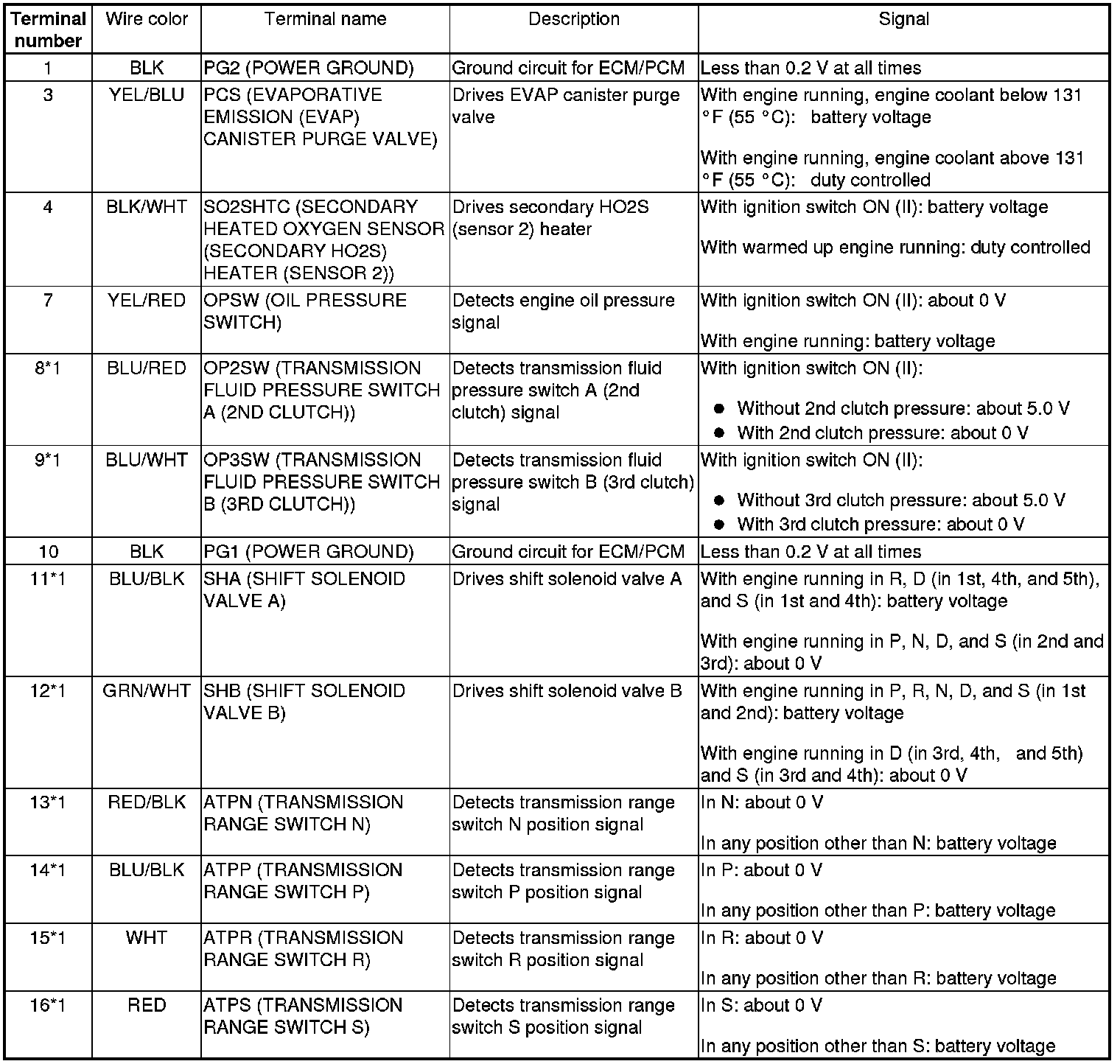

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)















ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)

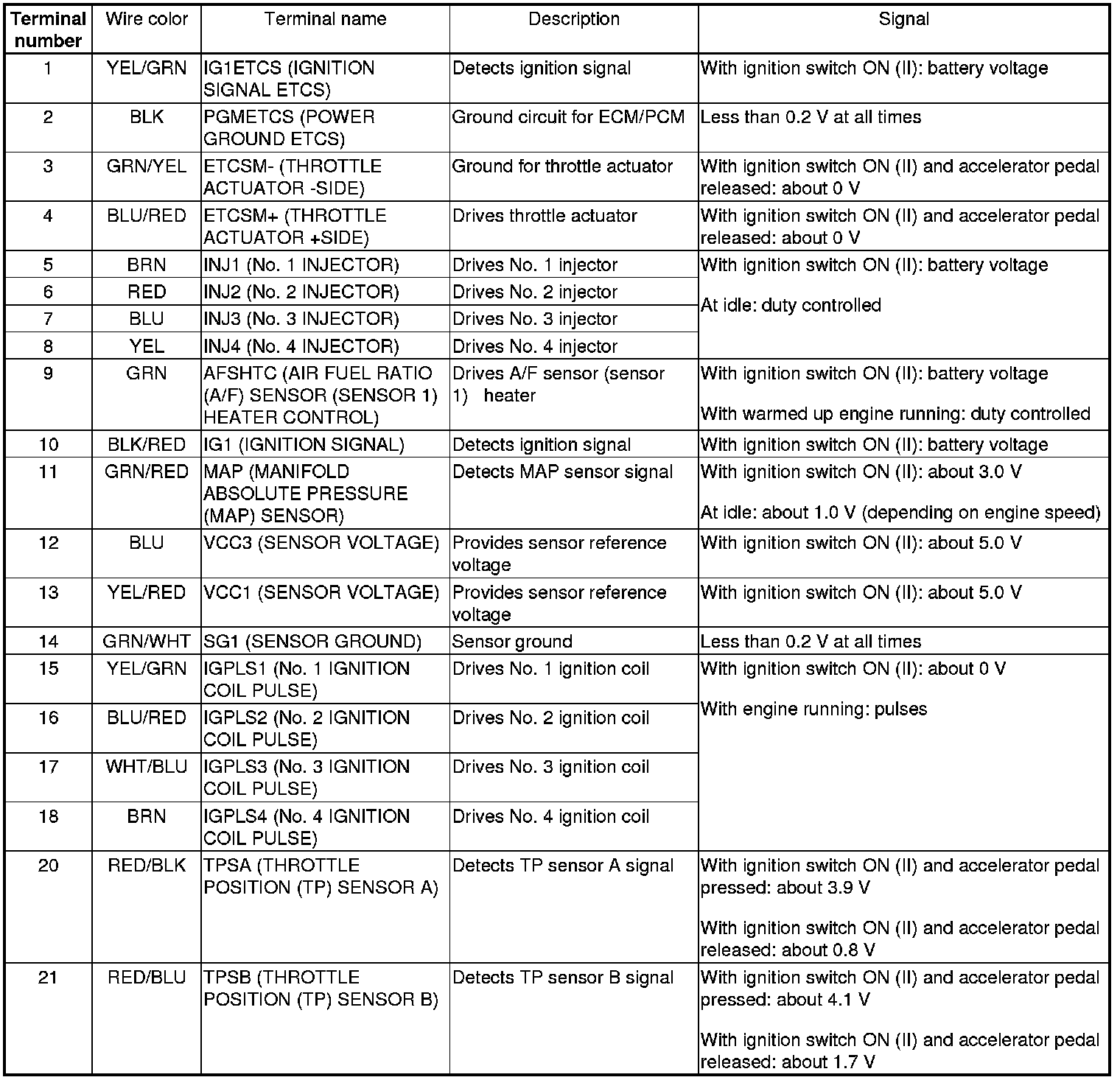

ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)















ECM/PCM Inputs and Outputs at ECM/PCM Connector A (square) (49P)

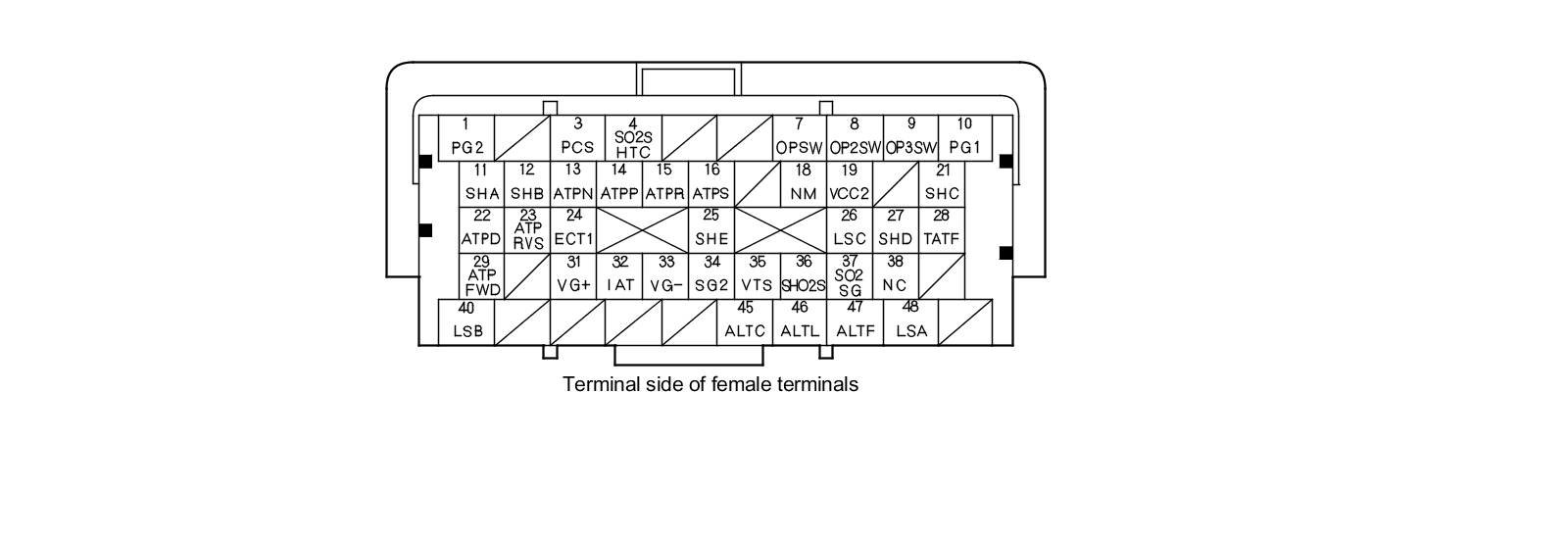

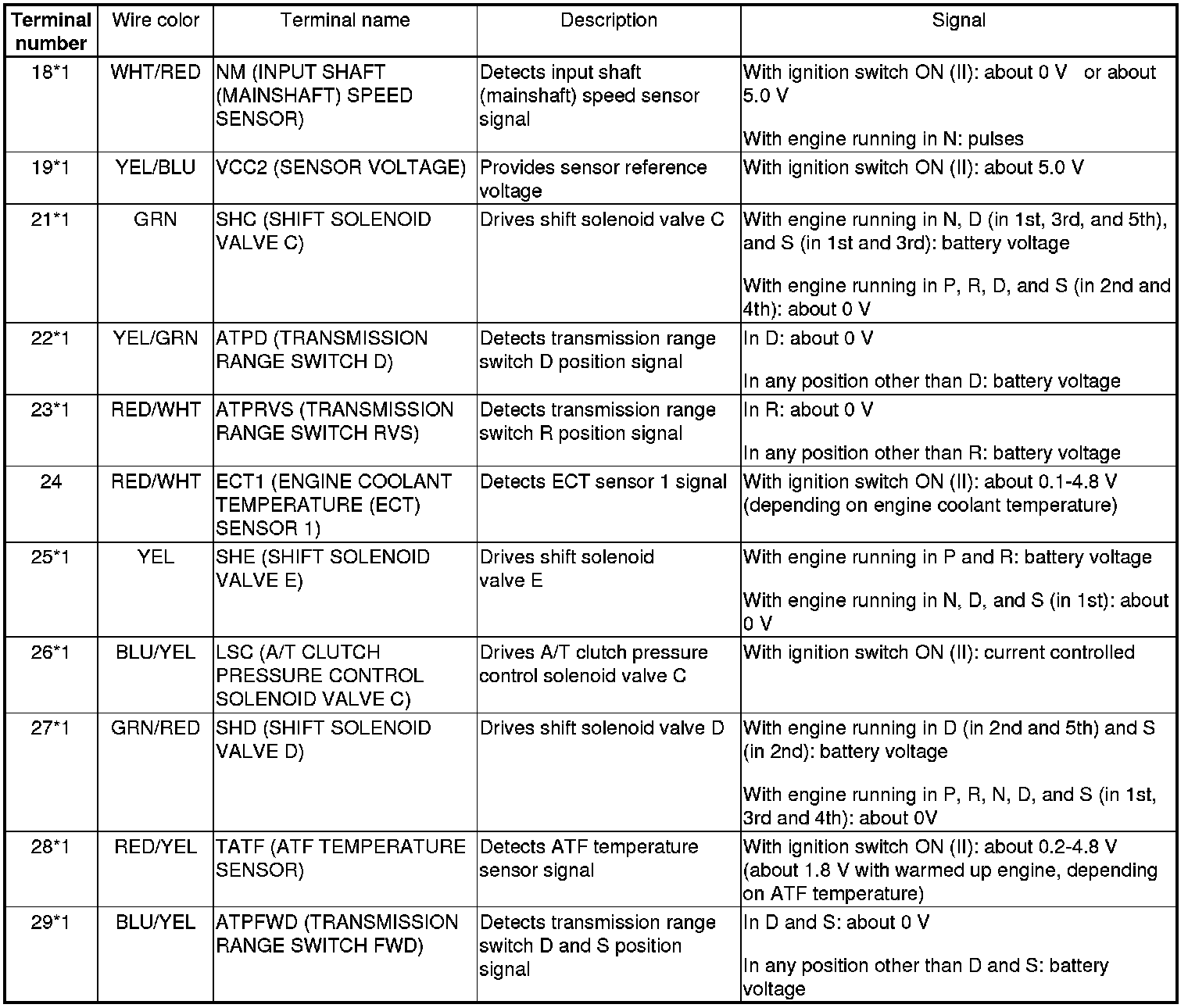

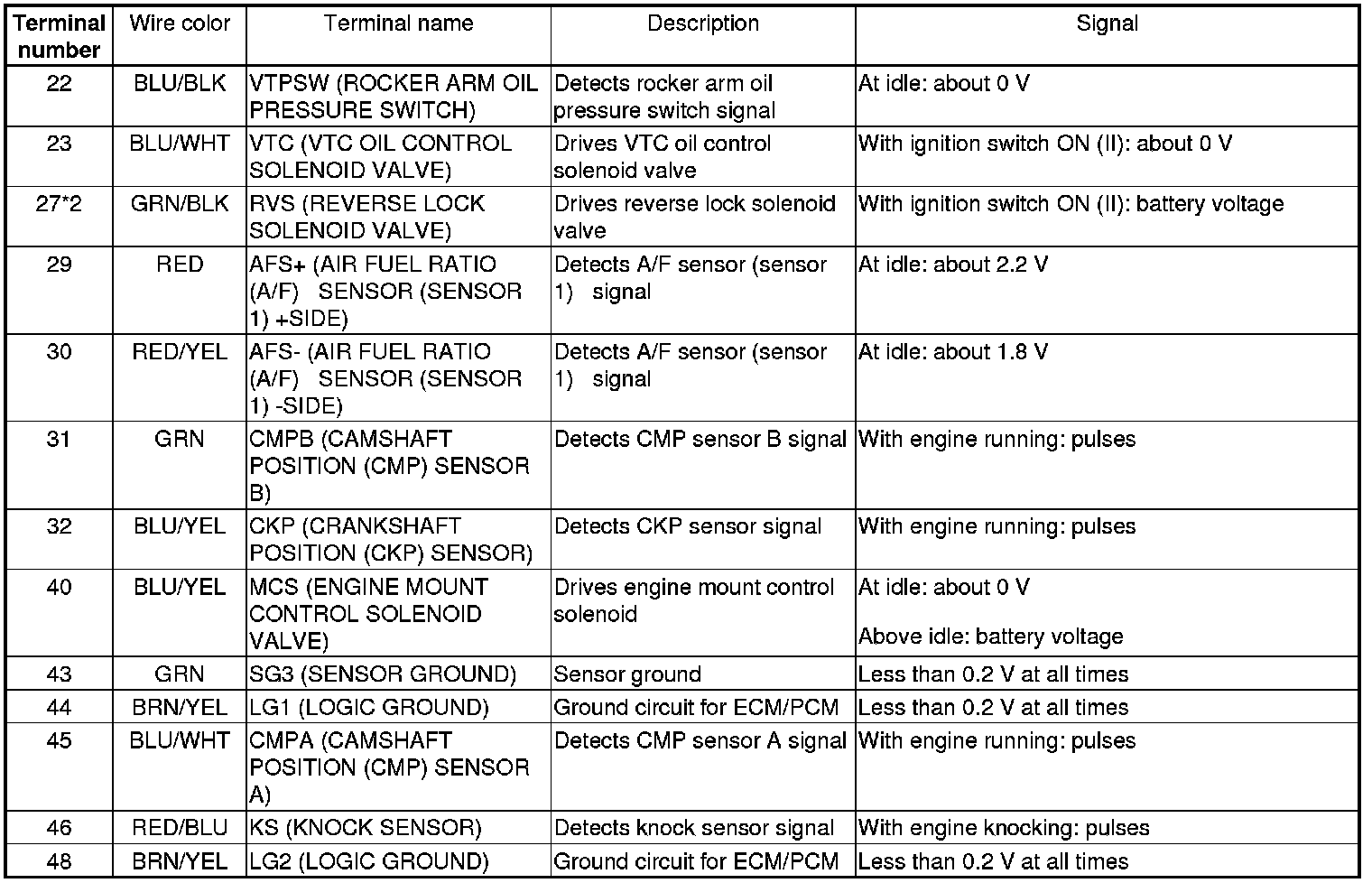

ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)















ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)















ECM/PCM Inputs and Outputs at ECM/PCM Connector B (triangle) (49P)

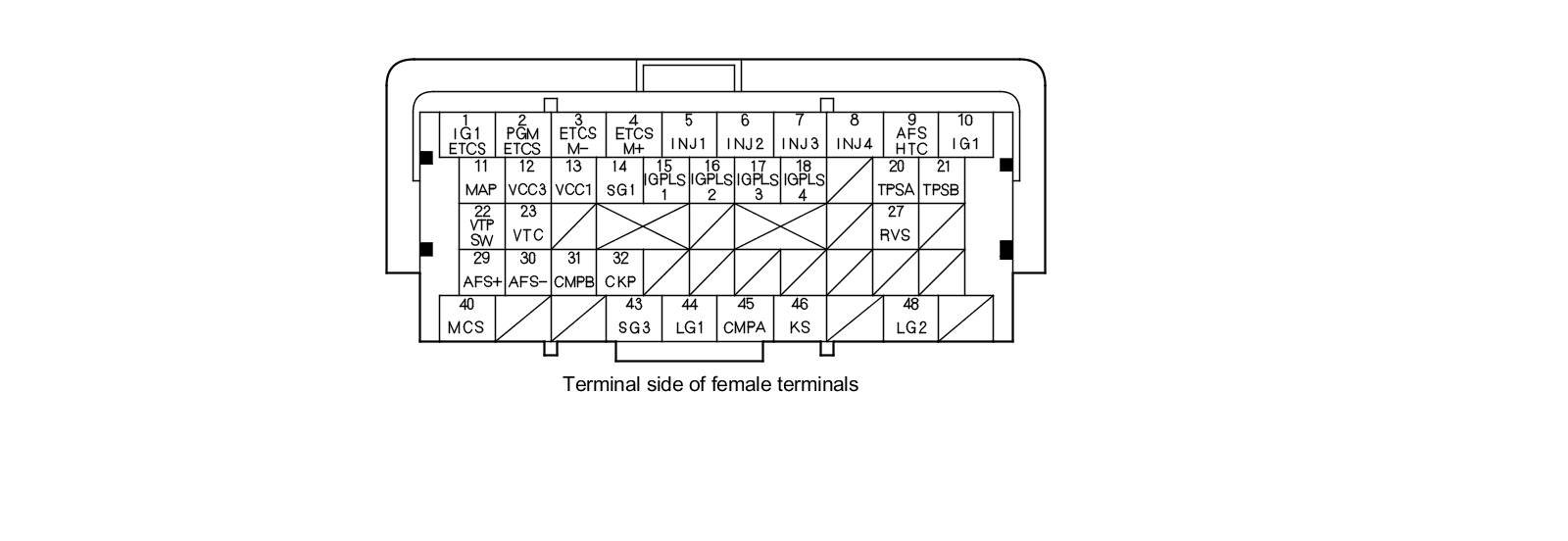

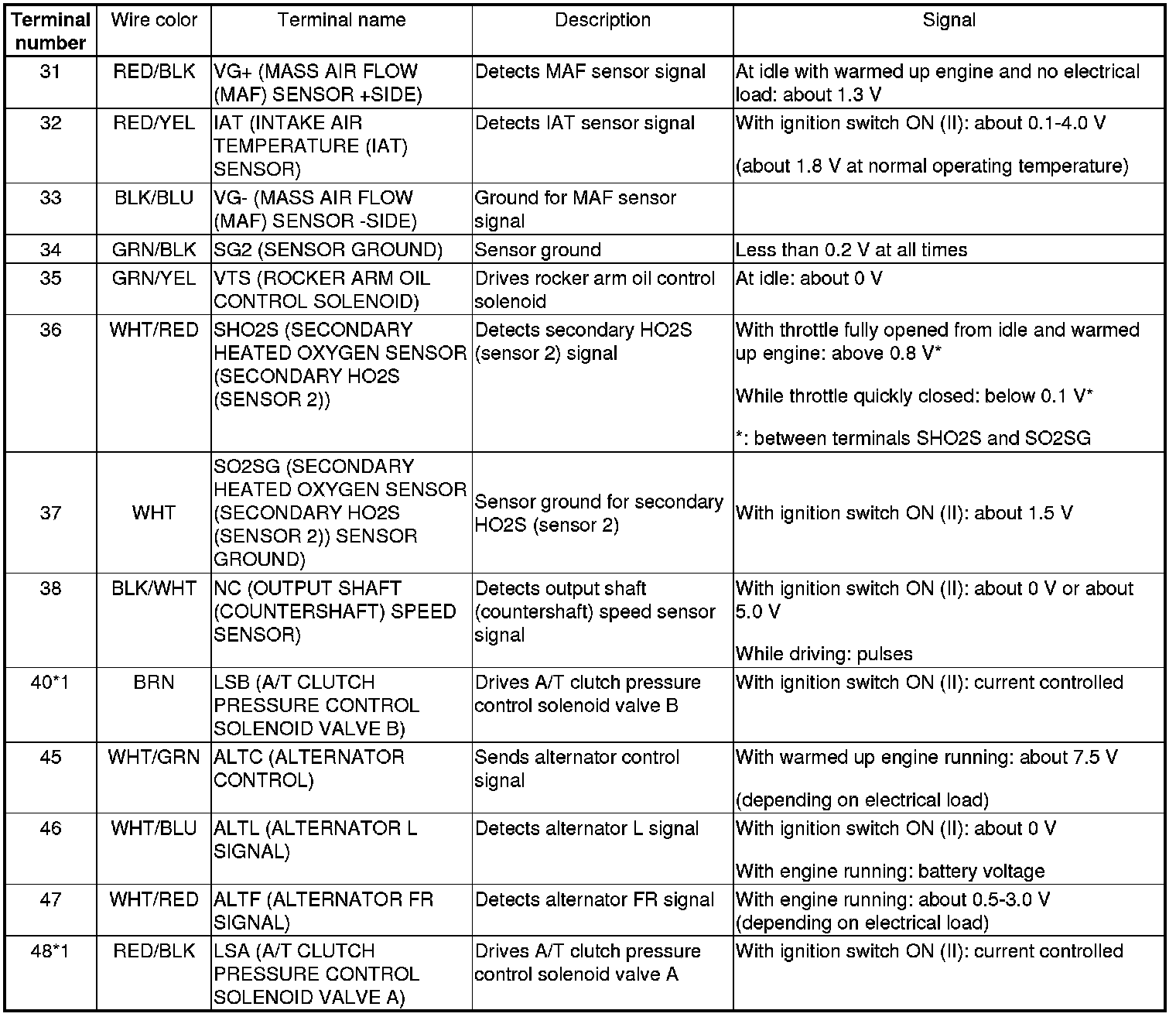

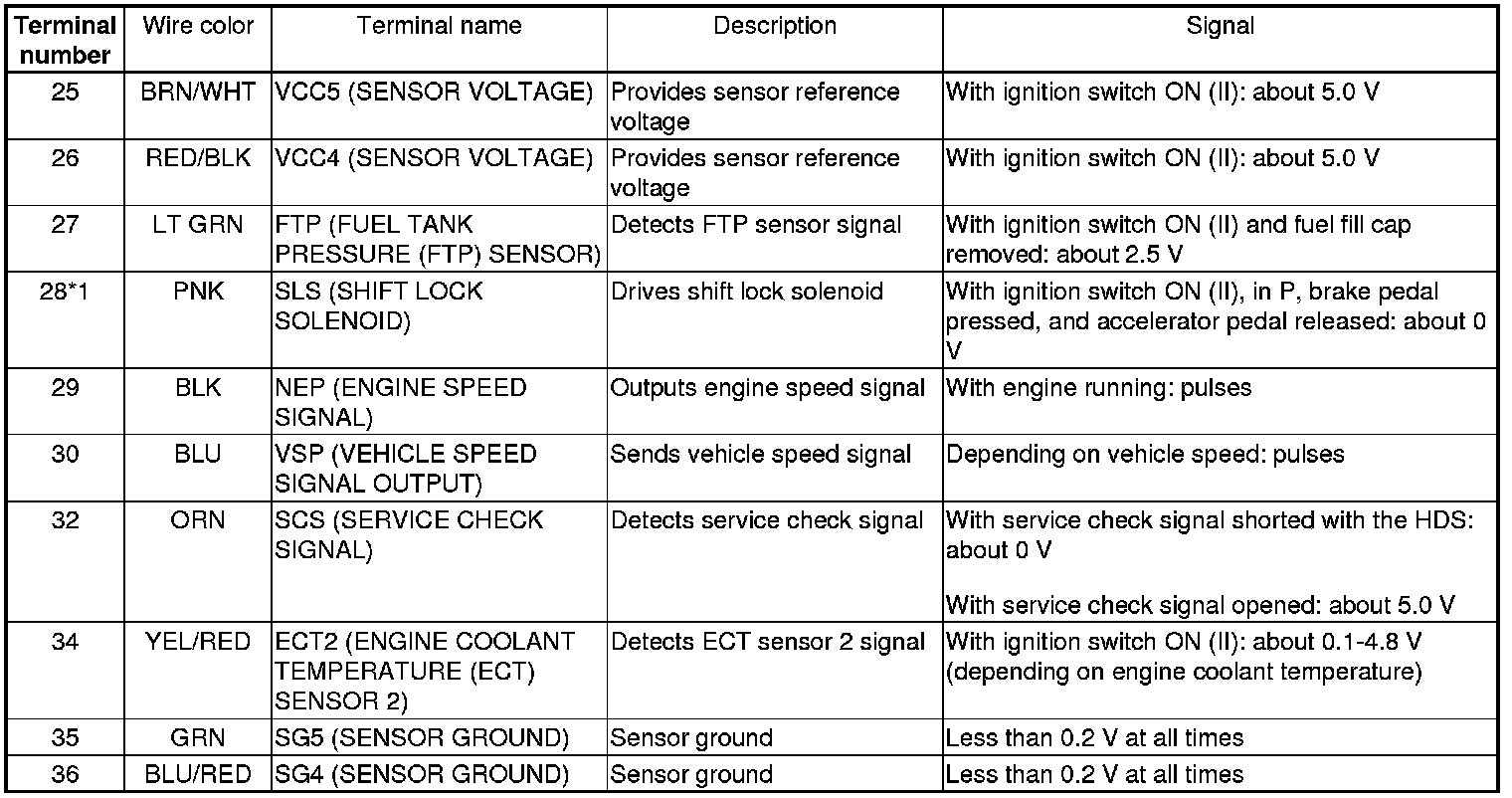

ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (49P)










ECM/PCM Inputs and Outputs at ECM/PCM Connector C (circle) (49P)
