Auxiliary Input / Output Jack, Entertainment System
>>
USB Adapter Control Unit Connector View (without Navigation)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

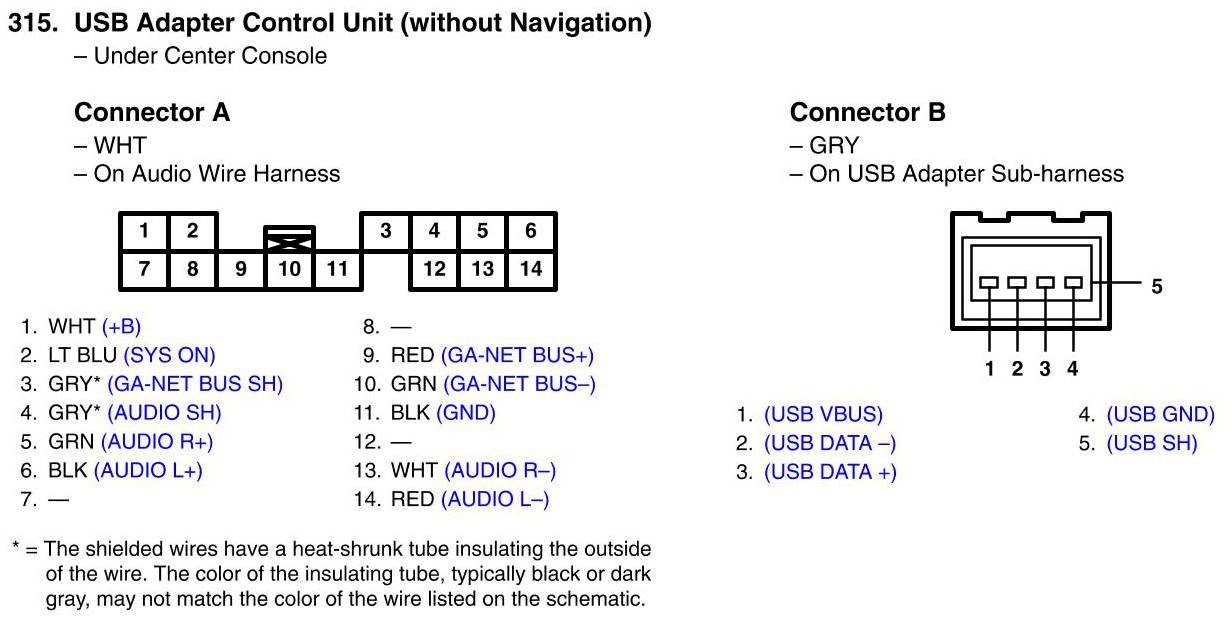

USB Adapter Control Unit Connector View (without Navigation)
