Front Outrigger Stiffener Replacement

Front Outrigger Stiffener Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.

1. Remove the front inner fender as needed Front Inner Fender Replacement.

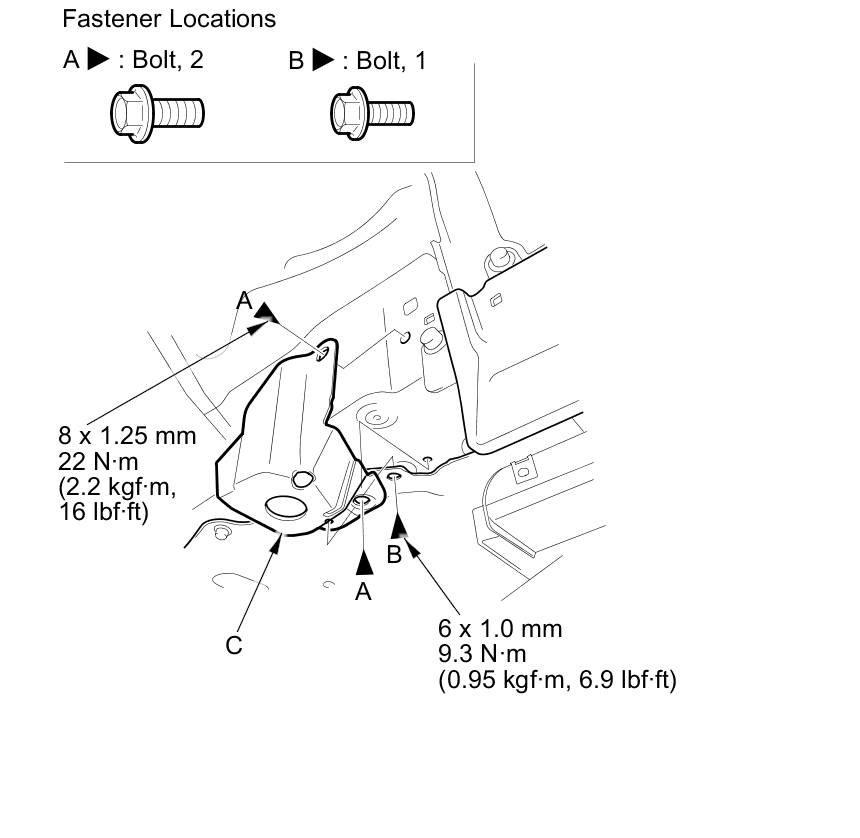

2. Remove the bolts (A, B), then remove the front outrigger stiffener (C).






3. Install the stiffener in the reverse order of removal.
