Ambient Temperature Sensor / Switch HVAC: Service and Repair

Outside Air Temperature Sensor Replacement

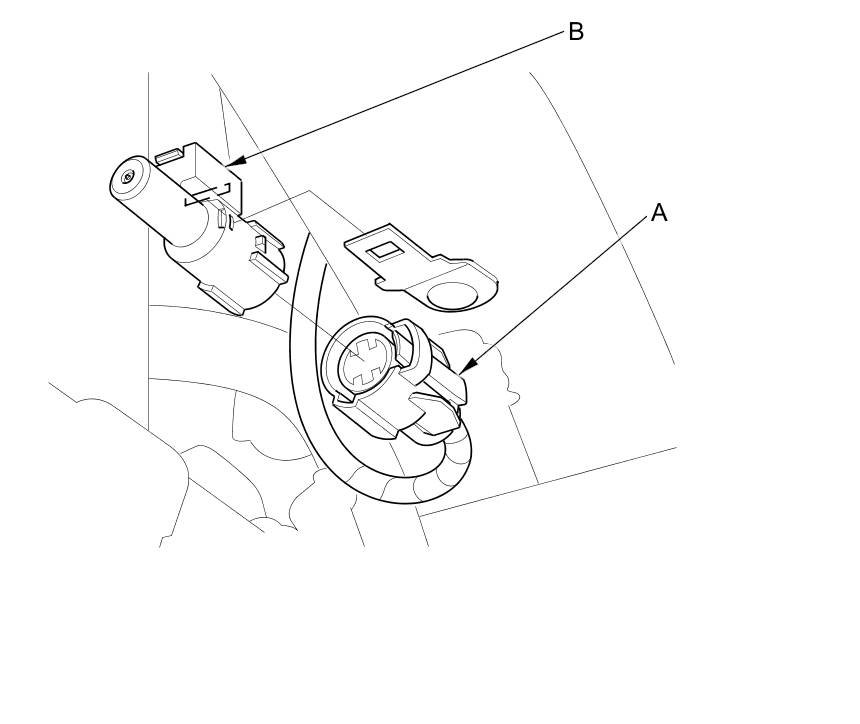

1. From behind the bumper, disconnect the 2P connector (A). Detach the clip and remove the outside air temperature sensor (B).





2. Install the sensor in the reverse order of removal.
