EGR Tube: Service and Repair

EGR Pipe Replacement

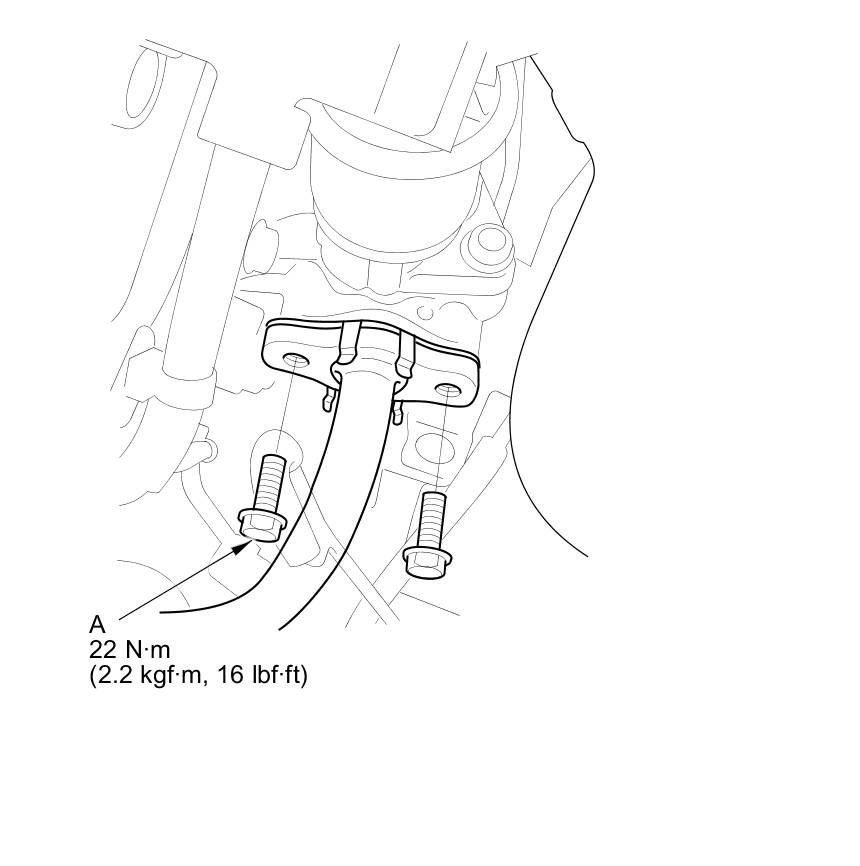

1. Remove the EGR pipe mounting bolts (A).






2. Raise the vehicle on a lift.

3. Remove the front splash shield Front Splash Shield Replacement.

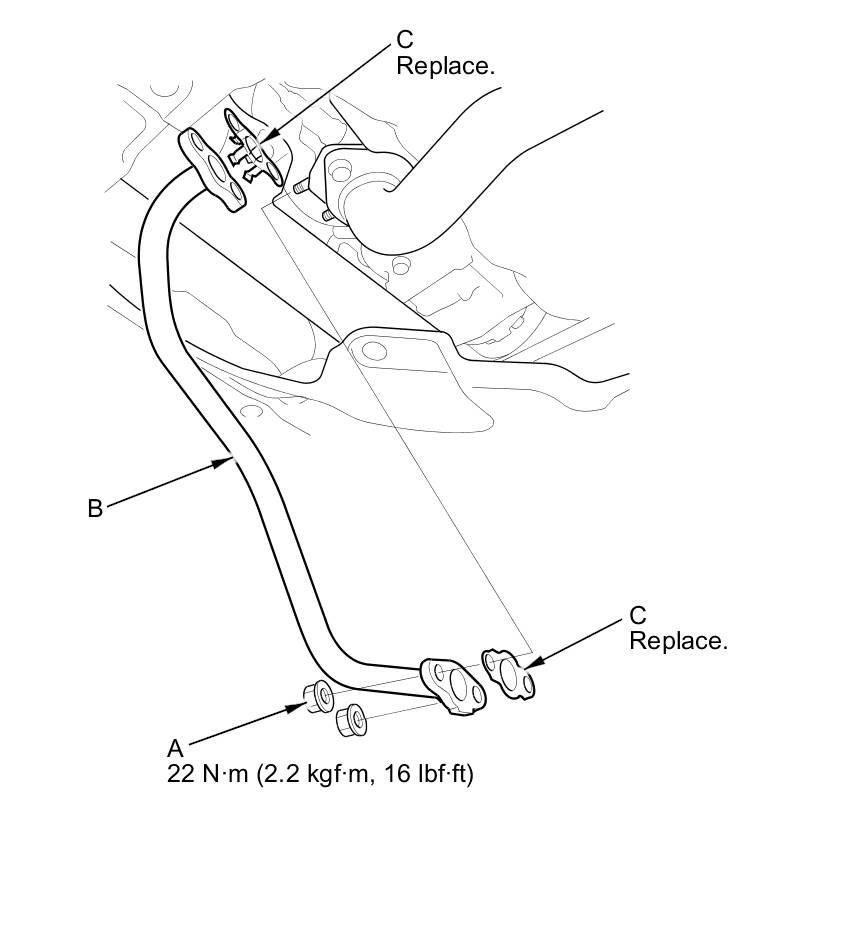

4. Remove the mounting nuts (A).





5. Remove the EGR pipe (B).

6. Install the parts in the reverse order of removal with new gaskets (C).
