Navigation Unit Connector for Inputs and Outputs: Notes

NOTE:

Refer to the audio system service information for the connectors C, E, and F inputs and outputs (see AUDIO UNIT CONNECTOR FOR INPUTS AND OUTPUTS (WITH NAVIGATION) ).
The connector with the asterisk (*) mark is a lever-lock type (see LEVER-LOCKED CONNECTOR ).

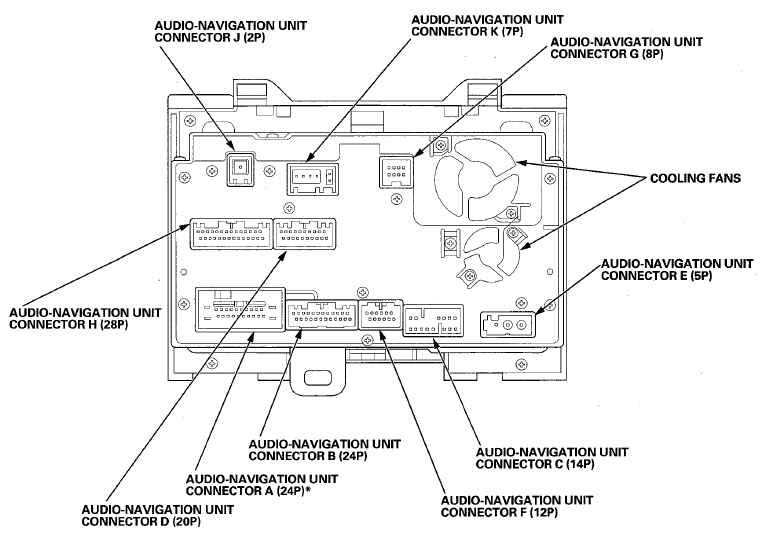

Fig 1: Identifying Navigation Unit Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
