DTC B1841: Steering Column Telesco Pulse Failure
- Clear the DTCs with the HDS.
- Turn the ignition switch to LOCK (0), and then back to ON (II), or press the engine start/stop button to select the OFF mode and then the ON mode.
- Operate the power telescopic in each direction with the tilt/telescopic steering switch.
- Check for DTCs with the HDS.
Is DTC B1841 indicated?
YES -Go to step 5.
NO -Intermittent failure, the telescopic position sensor is OK at this time. Check for loose or poor connections.
- Clear the DTCs with the HDS. Operate the tilt switch in each direction for at least 1 second, then check for DTCs with the HDS.
Is DTC B1840 also indicated?
YES -Go to step 17.
NO -Go to step 6.
- Clear the DTCs with the HDS.
- Turn the ignition switch to LOCK (0), and then back to ON (II), or press the engine start/stop button to select the OFF mode and then the ON mode.
- Operate the tilt switch for at least 2 seconds, and check the telescopic motor operation.
Does the telescopic motor run smoothly?
YES -Go to step 9.
NO -Go to step 24.
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Disconnect power tilt/telescopic steering control unit connector A (16P).
- Disconnect the power telescopic motor/position sensor 6P connector.

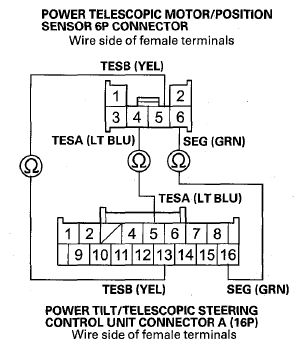

- Check for continuity between power tilt/telescopic steering control unit connector A (16P) terminals No. 5, No. 13, and No. 16 and power telescopic motor/position sensor 6P connector terminals No. 4, No. 5, and No. 6 respectively.Fig 1: Checking Continuity Between Power Tilt/Telescopic Steering Control Unit Connector A (16P) And Power Telescopic Motor/Position Sensor 6P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 13.
NO -Repair an open or high resistance in the wire(s).
- Check for continuity between body ground and power tilt/telescopic steering control unit connector A (16P) terminal No. 5 and No. 13 individually.Fig 2: Checking Continuity Between Body Ground And Power Tilt/Telescopic Steering Control Unit Connector A (16P) Terminal 5 And 13
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair a short to ground in the wire(s).
NO -Go to step 14.
- Reconnect power tilt/telescopic steering control unit connector A (16P).
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
- Measure the voltage between power telescopic motor/position sensor 6P connector terminals No. 4 and No. 6 and between terminals No. 5 and No. 6.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there about 5 V?
YES -Faulty power telescopic position sensor; replace the steering column assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
NO -If there is no voltage, replace the power tilt/telescopic steering control unit. If there is battery voltage, repair a short to power in the wires.
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Disconnect power tilt/telescopic steering control unit connector A (16P).
- Disconnect the power telescopic motor/position sensor 6P connector.

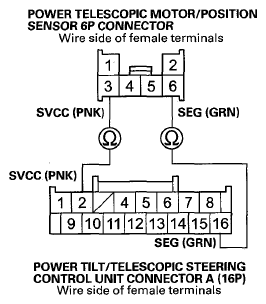

- Check for continuity between power tilt/telescopic steering control unit connector A (16P) terminals No. 2 and No. 16 and power telescopic motor/position sensor 6P connector terminals No. 3 and No. 6 respectively.Fig 4: Checking Continuity Between Power Tilt/Telescopic Steering Control Unit Connector A (16P) And Power Telescopic Motor/Position Sensor 6P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 21.
NO -Repair an open or high resistance in the wire(s).
- Reconnect power tilt/telescopic steering control unit connector A (16P).
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.
- Measure the voltage between power tilt/telescopic steering control unit connector A (16P) terminals No. 2 and No. 16.Fig 5: Measuring Voltage Between Power Tilt/Telescopic Steering Control Unit Connector A (16P) Terminals 2 And 16
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage when the telescopic switch is operated?
YES -Faulty power telescopic position sensor; replace the steering column assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
NO -Replace the power tilt/telescopic steering control unit (see POWER TILT/TELESCOPIC STEERING CONTROL UNIT INPUT TEST/REPLACEMENT ).
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Check the No. 8 (20 A) fuse in the auxiliary under-hood fuse/relay box.
Is the fuse OK?
YES -Go to step 26.
NO -Replace the fuse. If the fuse blows again, repair a short to ground on the No. 8 (20 A) fuse circuit.
- Measure the voltage between body ground and power tilt/telescopic steering control unit connector B (8P) terminal No. 5.Fig 6: Measuring Voltage Between Body Ground And Power Tilt/Telescopic Steering Control Unit Connector B (8P) Terminal 5
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
YES -Go to step 27.
NO -Repair an open or high resistance in the wire between the driver's under-dash fuse/relay box and the power tilt/telescopic steering control unit.
- Measure the voltage between body ground and power tilt/telescopic steering control unit connector B (8P) terminal No. 1 when operating the telescopic pull-push switch.Fig 7: Measuring Voltage Between Body Ground And Power Tilt/Telescopic Steering Control Unit Connector B (8P) Terminal 1
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there 0.2 V or more?
YES -Repair an open or high resistance in the wire between the power tilt/telescopic steering control unit and body ground (G403).
NO -Go to step 28.
- Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
- Disconnect power tilt/telescopic steering control unit connector B (8P).
- Disconnect the power telescopic motor/position sensor 6P connector.
- Check for continuity between power tilt/telescopic steering control unit connector B (8P) terminals No. 4 and No. 6 and power telescopic motor/position sensor 6P connector terminals No. 1 and No. 2 respectively.Fig 8: Checking Continuity Between Power Tilt/Telescopic Steering Control Unit Connector B (8P) And Power Telescopic Motor/Position Sensor 6P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Go to step 32.
NO -Repair an open or high resistance in the wire(s).
- Check for continuity between body ground and power telescopic motor/position sensor 6P connector terminals No. 1 and No. 2 individually.Fig 9: Checking Continuity Between Body Ground And Power Telescopic Motor/Position Sensor 6P Connector Terminals 1 And 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
YES -Repair a short to ground in the wire(s).
NO -Go to step 33.
- Do the telescopic motor test (see POWER TILT/TELESCOPIC STEERING MOTOR TEST
).
Is the motor OK?
YES -Replace the power tilt/telescopic steering control unit (see POWER TILT/TELESCOPIC STEERING CONTROL UNIT INPUT TEST/REPLACEMENT ).
NO -Faulty power telescopic position sensor; replace the steering column assembly (see STEERING COLUMN REMOVAL AND INSTALLATION ).
