Keyless Entry System/Power Door Lock System/Security System: Notes

NOTE: For connector or component location "PHOTO", see OEM COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

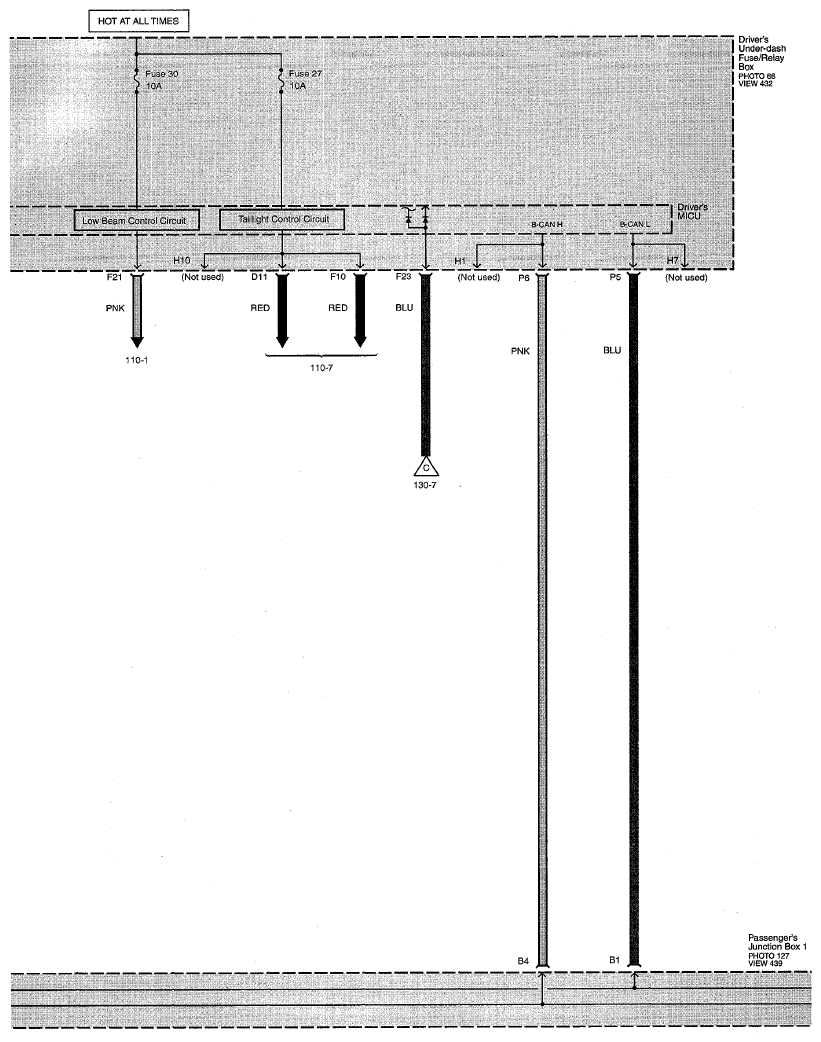

Fig 1: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130)

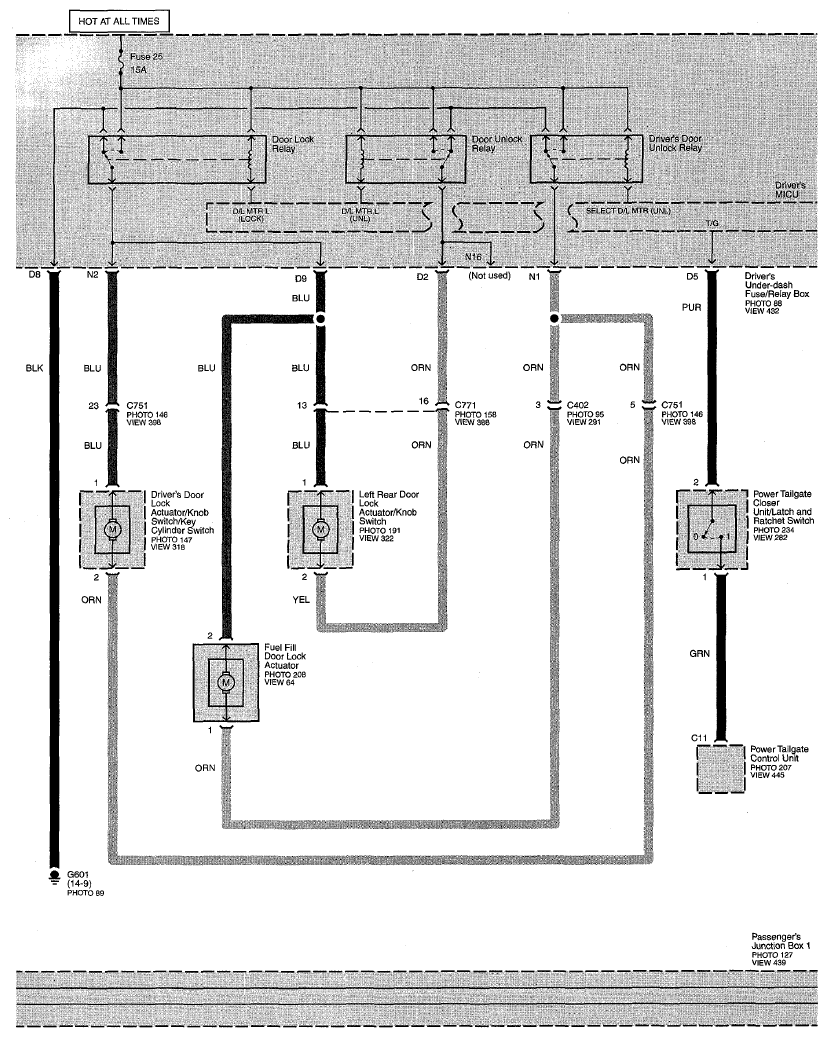

Fig 2: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130-1)

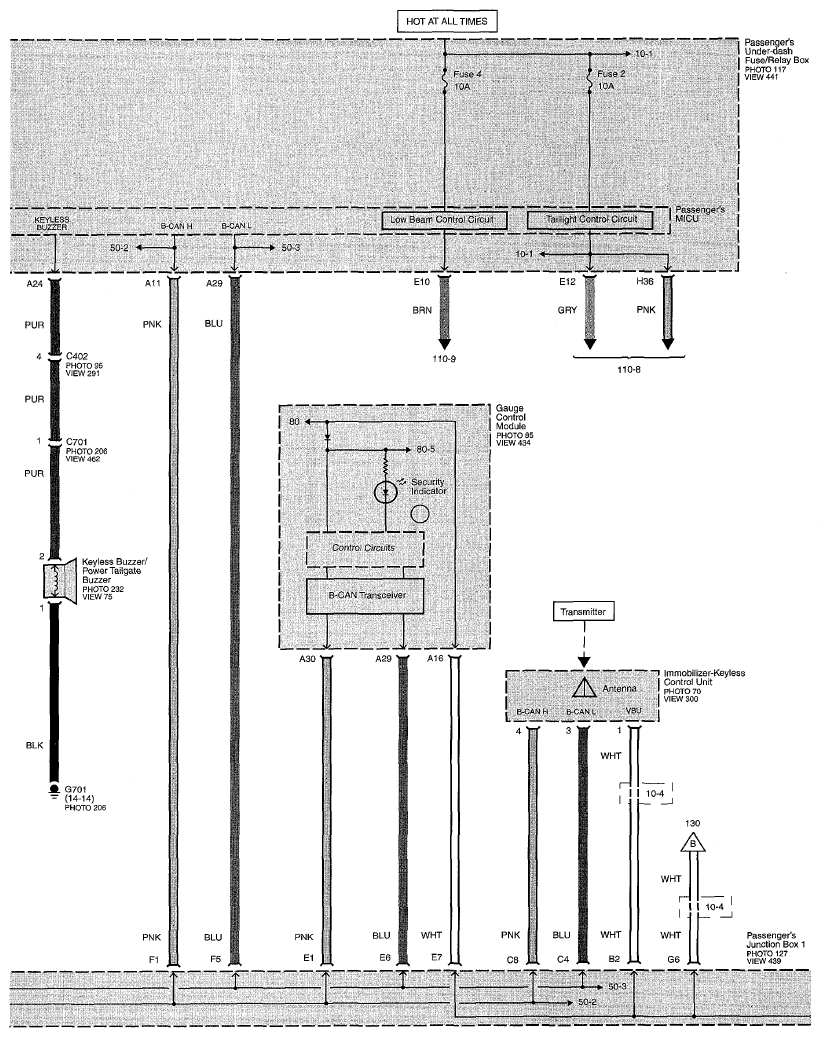

Fig 3: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130-2)

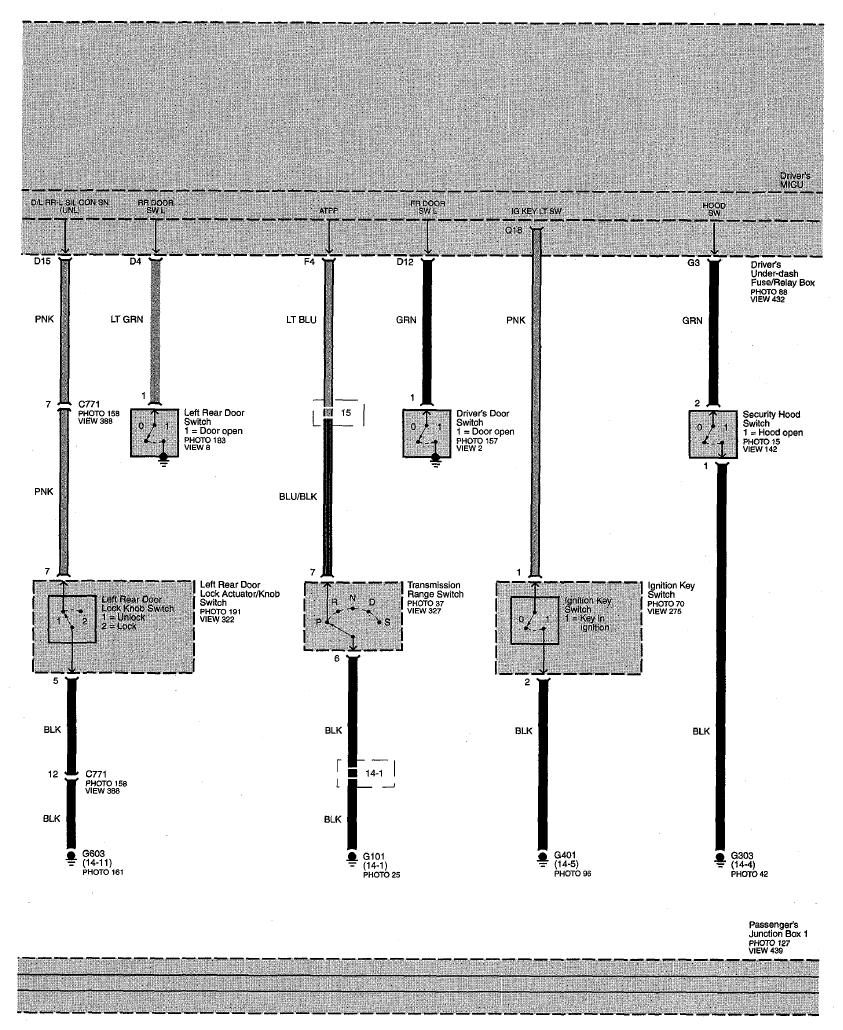

Fig 4: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130-3)

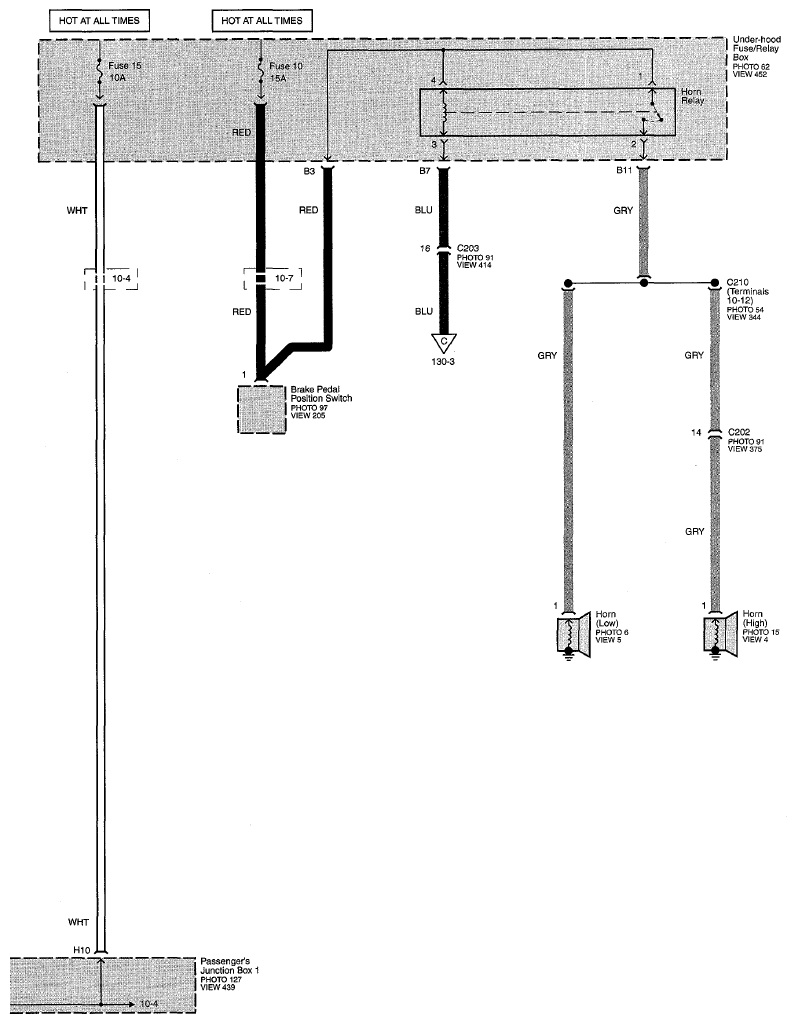

Fig 5: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130-4)

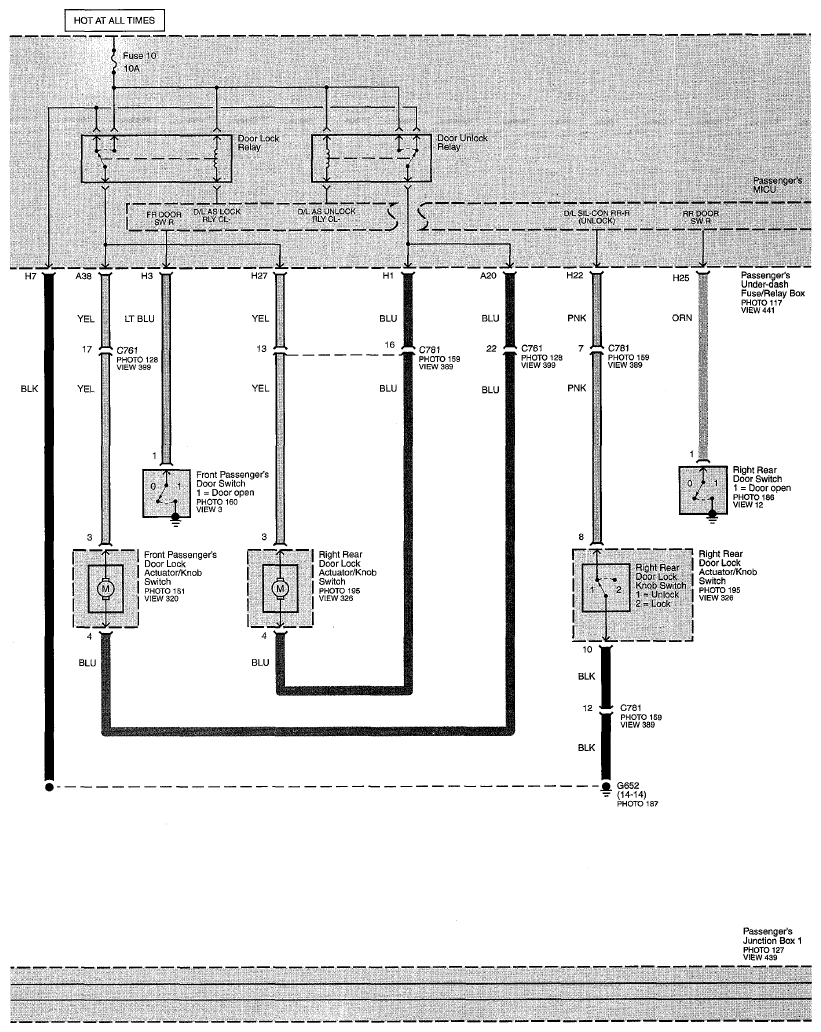

Fig 6: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130-5)

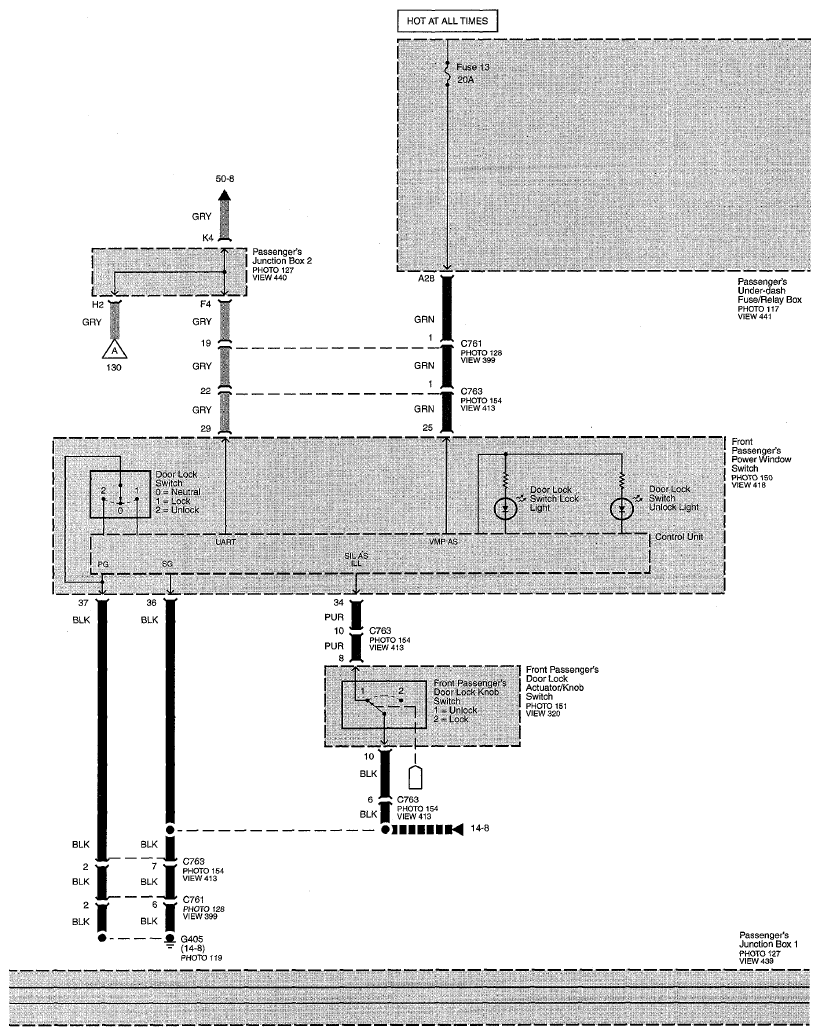

Fig 7: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130-6)

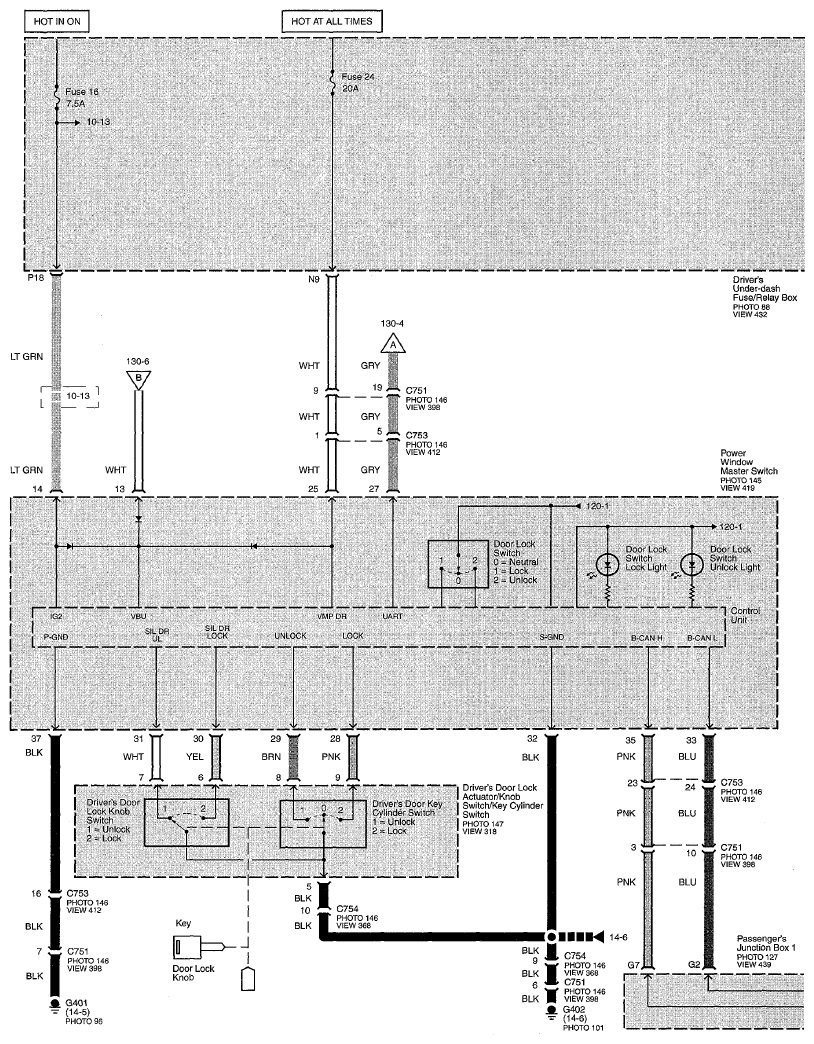

Fig 8: Keyless Entry System/Power Door Lock System/Security System Circuit Diagram (Page 130-7)
