With Navigation

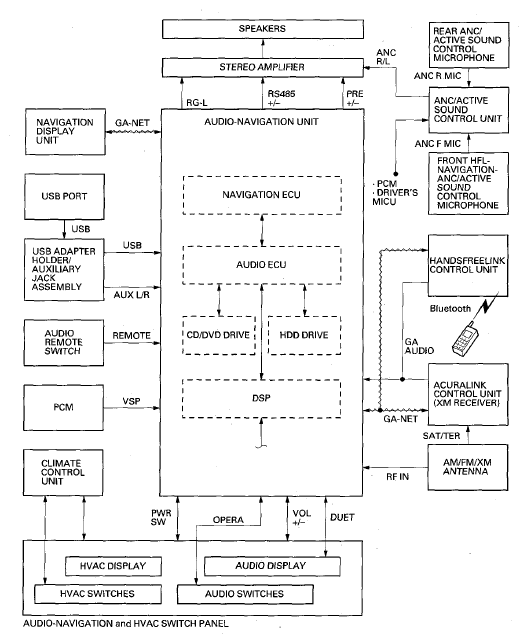

Fig 1: Audio Unit Circuit Diagram (With Navigation)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
