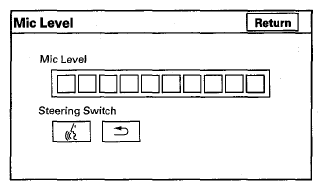

Mic Level
This diagnosis allows you to independently test the microphone and the TALK and BACK buttons. They are used to activate the voice control system. The microphone is located near the map light in the roof console. The microphone can now isolate the driver's voice even when there is noise or other conversations in the vehicle. To properly check the microphones, make sure you are sitting in the driver's seat.
- Press the TALK button on the steering wheel, wait unit you hear a beep, and in a normal voice say "testing". The TALK indicator on the screen should momentarily turn green, and the text Now Recording... should appear in yellow. If the talk indicator shown on the screen does not briefly turn green when you press the TALK button, check the wiring from the steering wheel TALK button to the HandsFreeLink control unit. If there is no Mic Level movement when you speak, then you should check the wires running from the microphone in the roof console to the HandsFreeLink control unit and the audio-navigation unit. If the wires are OK, the microphone must be faulty; replace the microphone located in the roof console (see FRONT HFL-ANC/ACTIVE SOUND CONTROL MICROPHONE REMOVAL/INSTALLATION ).
- Press the BACK button on the steering wheel. This should cause the BACK indicator on the screen to momentarily turn green. If it does not briefly turn to green, then check the wiring from the steering wheel BACK button to the HandsFreeLink control unit.NOTE: The Mic level should reach the 6th bar.
